Dimensions

N83544-UN-12MAR09

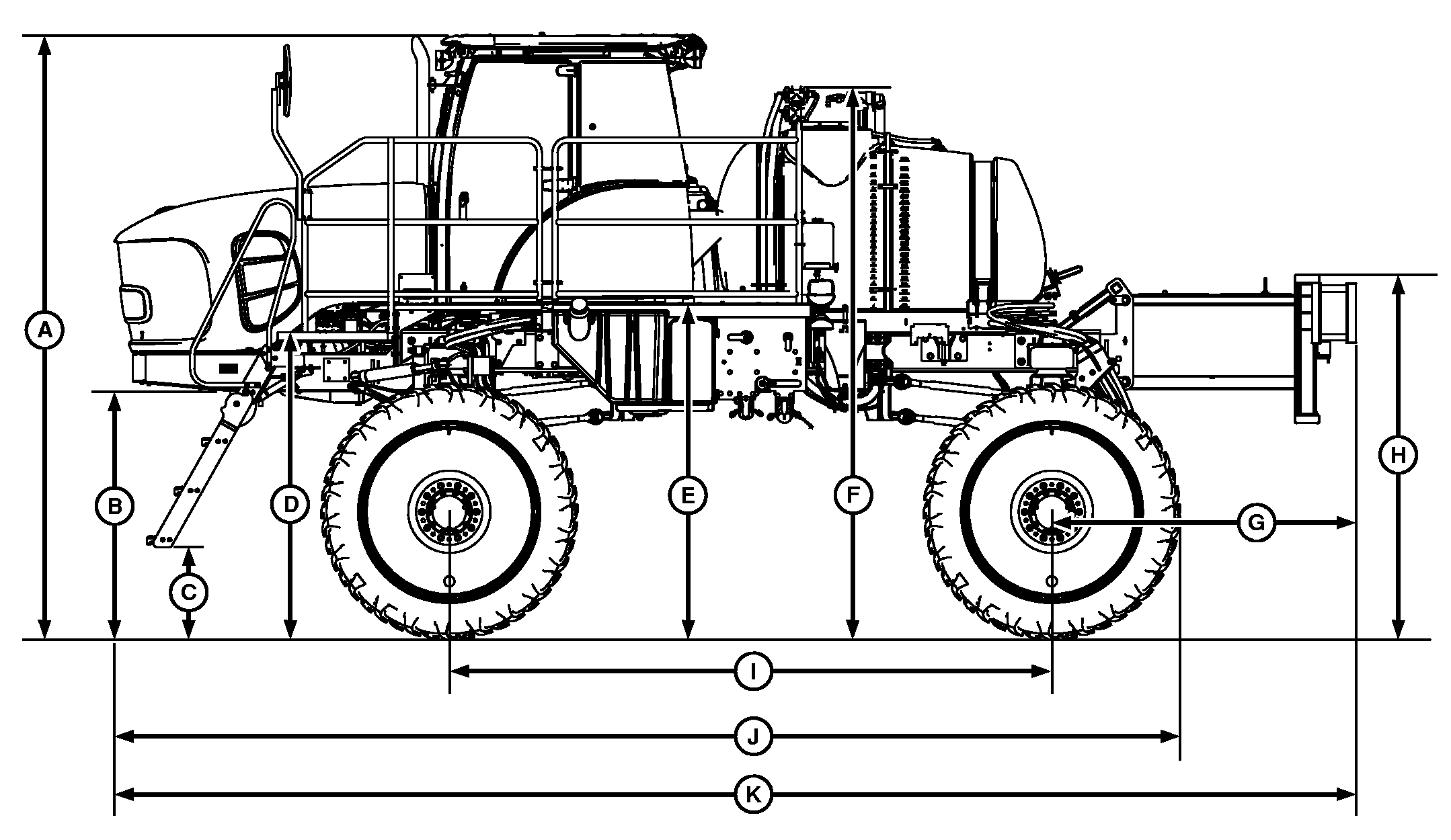

Dimensions
Item	Description	Wide Machine	Narrow Machine
A	Cab Height Air Springs, Inflated	3686 mm (145.1 in.)	3587 mm (141.2 in.)
A	Cab Height Air Springs, Deflated	3600 mm (141.7 in.)	3501 mm (137.8 in.)
B	Bottom Of Ladder	536 mm (21.1 in.)	436 mm (17.2 in.)
C	Underframe Clearance	1299 mm (51.1 in.)	1099 mm (43.3 in.)
D	First Platform Height	1802 mm (71 in.	1703 mm (67 in.)
E	Top Platform	2028 mm (79.8 in.)	1929 mm (75.9 in.)
F	Top of Eductor Fittings	3357 mm (132.2 in.)	3258 mm (128.3 in.)
G	Tire Center to Rear Most Boom Point1	2262 mm (89.1 in.)	2262 mm (89.1 in.)
H	Highest Point of Boom2	3010 mm (118.5 in.)	2911 mm (114.6 in.)
I	Wheelbase	3691 mm (145.3 in.)	3691 mm (145.3 in.)
J	Front of Machine-to-Rear of Rear Tire	5746 mm (226.2 in.)	5746 mm (226.2 in.)
K	Front of Machine-to-Rearmost Boom Point	7692 mm (302.8 in.)	7692 mm (302.8 in.)
	Total Transport Length With Boom Folded	8.31 m (27.25 ft.)	8.31 m (27.25 ft.)
