Machine Informational Decals

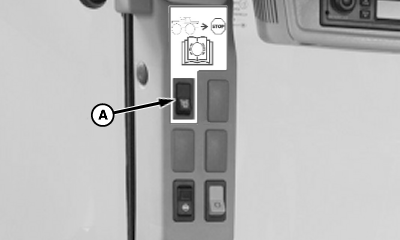

Secondary Braking Decal

N85454-UN-21JUL09

A - Secondary Braking Switch

IMPORTANT: The secondary brake engages the park brake system. Engaging secondary brake system while machine is moving causes significant wear to the park brake components. Park brakes will need to be tested to verify proper operation after using the secondary brake. (See Verify Proper Operation Of Park Brakes in Operating The Machine section.)

NOTE: Secondary brake switch does not need to be engaged when parking machine. Park brakes are automatically applied when multifunction control handle is placed in the "PARK" position and the SprayStar system reads "0" mph for 0.5 seconds or the engine is shut "OFF".
