Adjust Rearview Mirrors

IMPORTANT: Rearview mirrors adjusted out too far may be damaged when booms are folded in. Adjust mirrors with booms folded in.

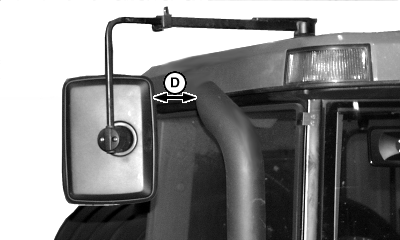

IMPORTANT: Right-hand plastic mirror head may be damaged from heat if placed too close to exhaust pipe. Maintain at least 76 mm (3 in.) (D) clearance between mirror head and exhaust pipe.

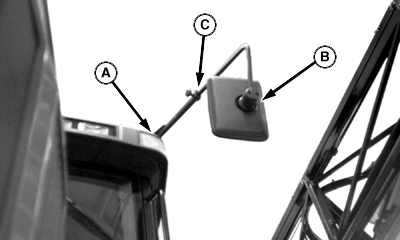

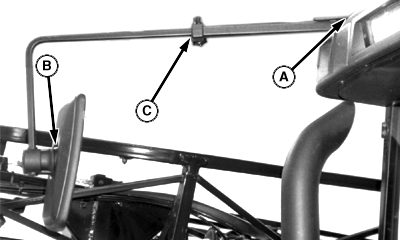

Adjust mirrors (with booms folded in) for desired rear visibility by moving mirror arm pivots (A), pivoting mirror heads (B), and telescoping arms (C).

When positioning right-hand mirror, rotate off-set mirror head so larger part of head is towards outside of machine and has a minimum of 76 mm (3 in.) clearance from exhaust and boom.

A-Mirror Arm Pivots
B-Pivoting Mirror Heads
C-Telescoping Arms
D-Dimension, 76 mm (3 in.)
