Setup of SPRAYSTAR™ System

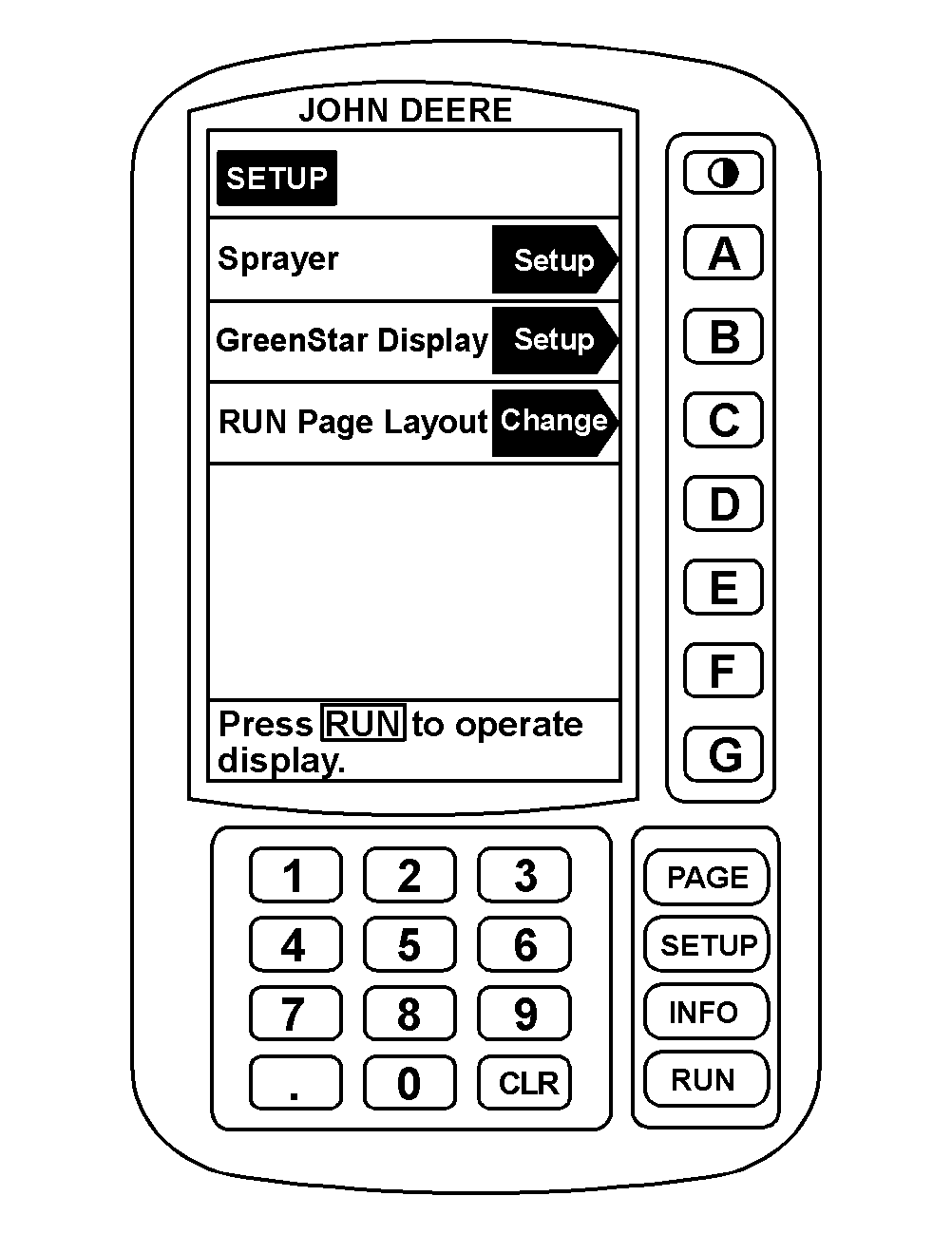

The setup screen allows the operator to select screens for changing specific information. Press "SETUP" to view the setup screen.

This page allows the setup of three different items:

SPRAYER -Setup or change information that corresponds with the sprayer.

GREENSTAR ™ DISPLAY -Generic setup screen that allows operator to change units of measurement and background intensity of the display.

RUN PAGE LAYOUT -Not currently used.

(Do not press "C" or screen will go blank. If "C" is accidentally pushed, reset monitor by turning key OFF, then ON again.)

SPRAYSTAR is a trademark of Deere & Company.
GREENSTAR is a trademark of Deere & Company.

AG,OUO1011,681 -19-06JUL99-1/1
