Setup Sprayer-Page 2

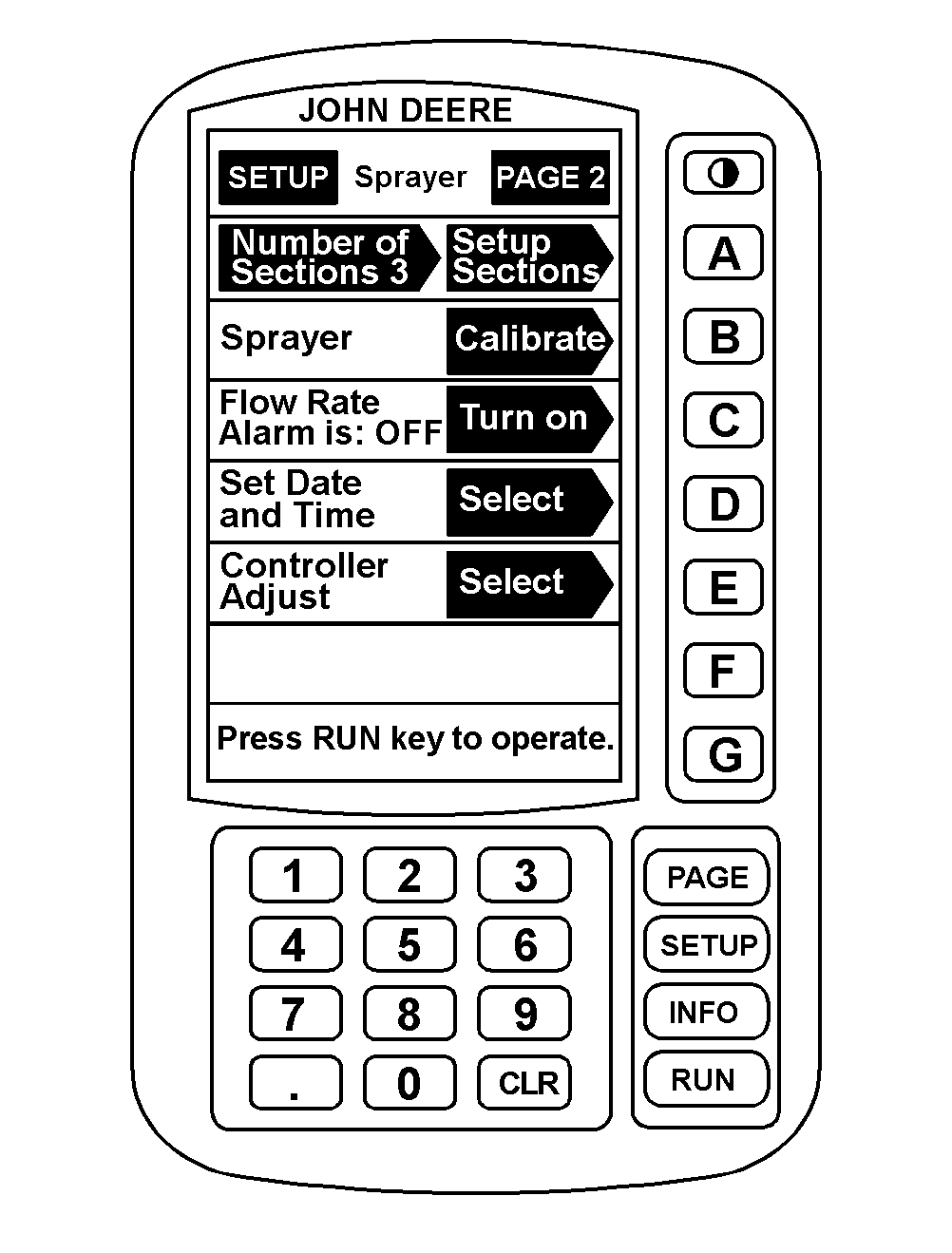

On Page 2 of the Setup Sprayer menu, the following are displayed and can be changed:

Number of Sections-Setup Sections- When the number sections are entered, operator can go to the Setup Section of the boom. At this location, number of nozzles per section, nozzle spacing and nozzle spray width can be entered. The section spray width and total spray width is calculated by the SPRAYSTAR ™ system.

Sprayer Calibrate- By pressing "B" the operator can calibrate the following: flowmeter, pressure sensor, wheel speed sensor and radar sensor (optional).

Flow Error Alarm On/Off- Allows the operator to turn on or off a flow error alarm. This alarm will be displayed when the actual application rate is 20% under or over the target rate for 6 seconds.

Set Date and Time- Allows the operator to set date and time.

Controller Adjust- Allows the operator to change performance of the SPRAYSTAR ™ rate control system. The operator can change the sprayer's response time, perform an auto calibration, reset calibration values to factory settings, and turn boom charge ON and OFF.

SPRAYSTAR is a trademark of Deere & Company.

AG,OUO1011,682 -19-06JUL99-1/1
