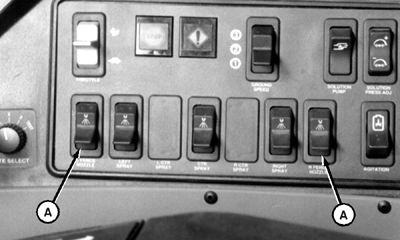

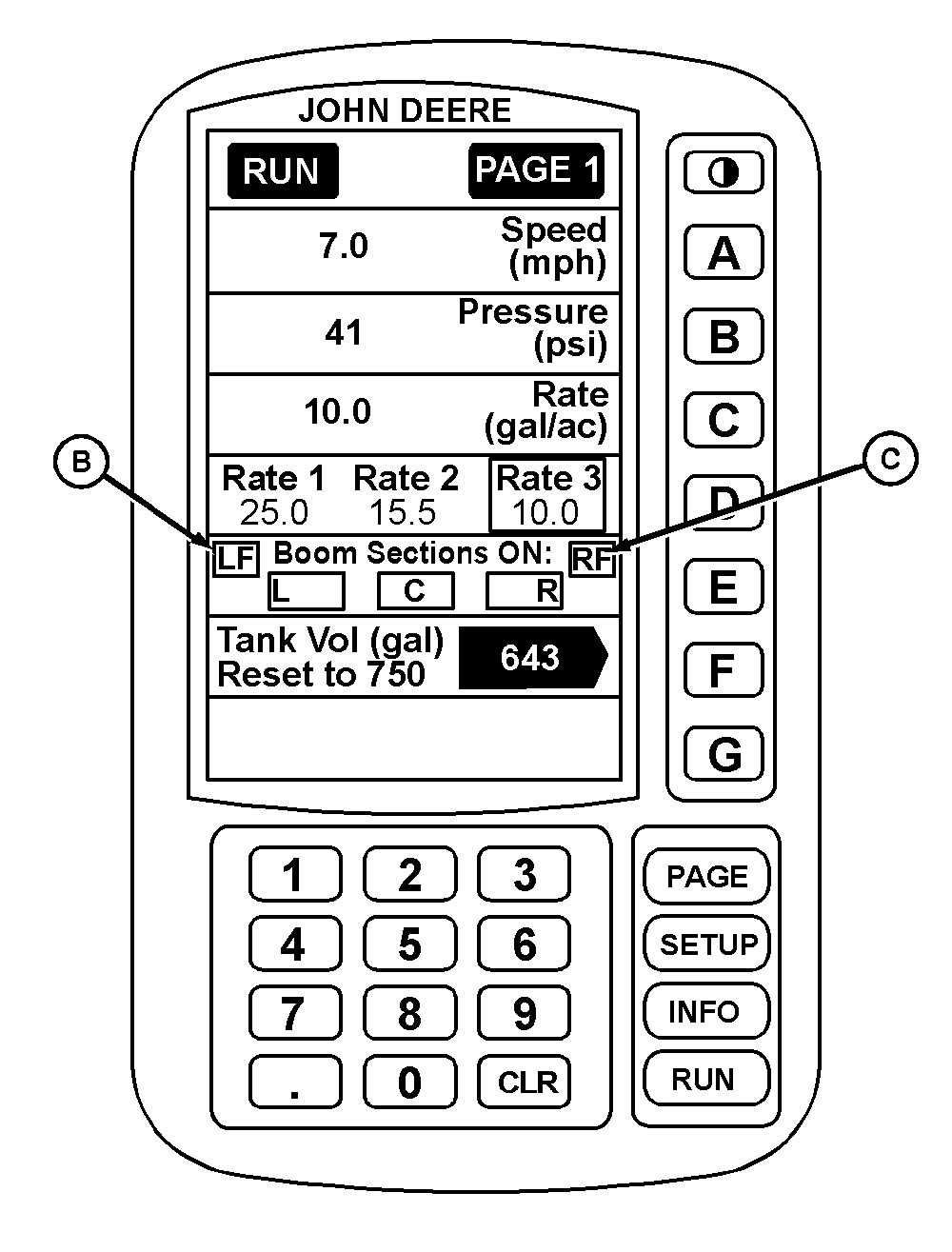

Fence Row NozzlesNo setup in the SPRAYSTAR ™ Display is needed for the fence row nozzles. The SPRAYSTAR ™ System will recognize the fence row nozzles when the fence row nozzle switches (A) are installed on the console. It will automatically adjust the Spray Rate Controller when the fence row nozzle is turned on. SPRAYSTAR ™ will show additional nozzle on outer boom section with a spray width of 508 mm (20 in.). When the fence row nozzle is turned on, an "LF" (B) or "RF" (C) will appear above the boom sections on Page 1 of the RUN of the SPRAYSTAR ™ Display. The hectare (acre) counter on "RUN PAGE 2" and "JOB SUMMARIES PAGE" of SPRAYSTAR ™ Display will record the additional spacing of 508 mm (20 in.) per end row nozzle when turned on.
|
|
|
SPRAYSTAR is a trademark of Deere & Company. | AG,OUO1011,693 -19-06JUL99-1/1 |
