Setting Manual Boom Charge Pressure

The boom charge pressure which the operator wants to spray for the initial 3 seconds after the master "ON" switch is pressed is the same pressure as the manual pressure setting.

To set manual boom charge pressure:

AG,OUO1011,705 -19-06JUL99-1/2

1. Set the manual pressure setting to the desired manual boom charge pressure by pressing "RUN".

2. Turn rate select knob (A) to "0".

IMPORTANT: It is recommended to set manual boom charge manual pressure setting at the pressure where the machine will be operating most of the time.

3. Press "D" to input manual target/boom charge pressure.

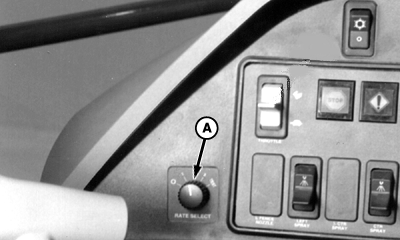

A-Rate Select Knob
