Operating Lights

CAUTION: Accidental collision with another vehicle can cause serious injury or death to you or others. Always comply with traffic regulations when driving machine on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using flood lights which could blind or confuse other drivers.

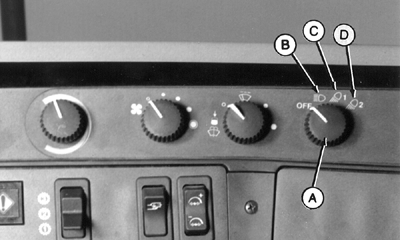

Light switch (A) has four positions-OFF, Road (B), Field 1 (C), Field 2 (D), and operates regardless of the key position.

OFF POSITION

Turns off all exterior lighting with exception of warning lights if hazard light switch is on.

NOTE: See LIGHT OPERATION TABLE in this section.

A-Light Switch
B-Road Position
C-Field Position 1
D-Field Position 2

AG,OUO1011,732 -19-07JUL99-1/1
