Adjusting Air Suspension Seat

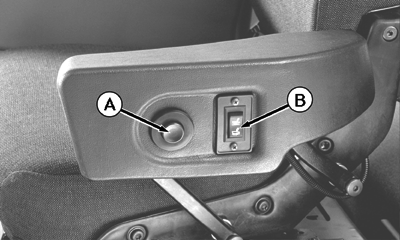

Press switch (B) to raise or lower the seat. Each operator of different weight and height should:

• Lower seat (release pressure from air suspension).
• Raise the seat to adjust for individual weight and height.

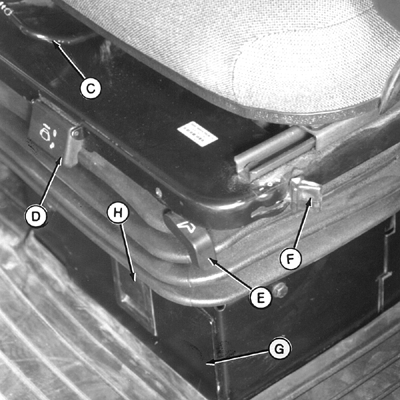

Pull up on handle (C) to allow the seat to slide forward or backward.

Pulling up on handle (D) allows the seat sideways movement. Push handle down to lock lateral movement.

Lever (E) controls forward and backward movement. Push down on lever to lock seat in forward or rearward position.

Lever (F) can be set to three positions for desired comfort. Move lever rearward (+) to firm the ride, and forward (-) to soften the ride.

A-Left-Hand Armrest Height Adjustment
B-Height Adjustment
C-Fore-Aft Adjustment
D-Lateral Attenuator Lock
E-Fore-Aft Attenuator Lock
F-Damping Lever
G-Storage Drawer
H-Storage Drawer Handle

AG,OUO1011,736 -19-07JUL99-1/1
