Operating Rear Windshield Wiper and Washer-Optional

IMPORTANT: Solution hoses can interfere with rear wiper. If rear wiper is installed, route hoses to make sure wiper travel is not restricted.

NOTE: The front and rear wiper use the same washer reservoir. (Rear wiper is a dealer installed option.)

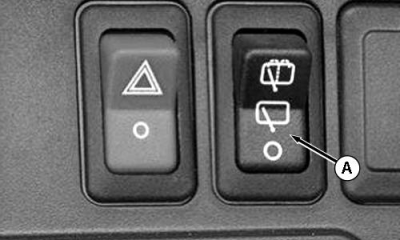

Switch (A) has three operating positions:

Top WASHER position-hold switch down to activate washer

Center ON position-windshield wiper is activated

Bottom OFF position

RW56055


A-Switch

AG,OUO1011,740 -19-07JUL99-1/1
