Idling Engine

Allowing the engine to idle uses fuel inefficiently and can cause a build-up of carbon in the engine.

If machine must be left with the engine running for more than 3 or 4 minutes, minimum engine speed should be 1000 rpm.

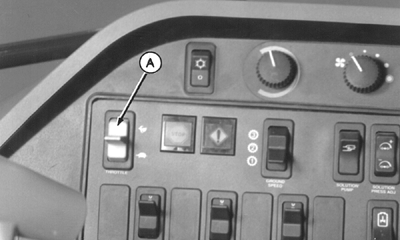

Press "RUN" button, then "PAGE" button to view RPM display on monitor screen. Lift up on throttle switch (A) until desired RPM is displayed.


A-Throttle Switch

N42173TS
N42173QN

AG,OUO1011,748 -19-07JUL99-1/1
