Driving the Machine

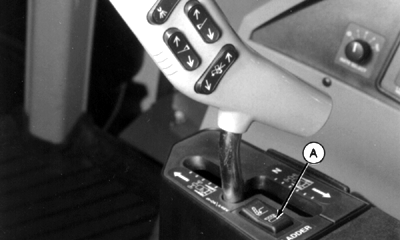

1. Press ladder switch (A) to raise ladder.

A-Ladder Switch

AG,OUO1011,750 -19-07JUL99-1/4

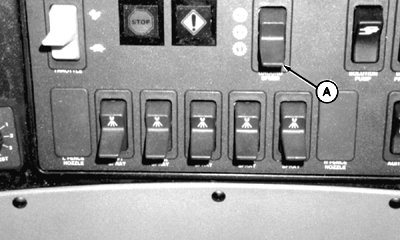

2. Push and hold throttle switch (A) upward to achieve maximum engine speed.

A-Throttle Switch

AG,OUO1011,750 -19-07JUL99-2/4

IMPORTANT: Machine damage can occur if speed range switch is moved from a higher speed range to a lower speed range with engine exceeding 3000 rpms. Speed range can be changed when machine is moving or stopped.

Drive train damage can occur if hydro lever is advanced more than halfway when wheels are spinning (loss of traction).

3. Place speed range switch (A) in first speed range.

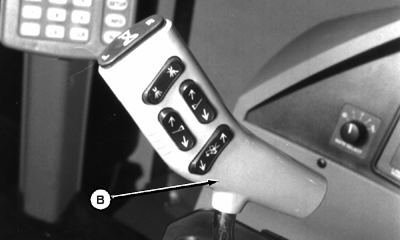

4. Push hydro lever (B) slowly forward to start forward motion. Continue pushing lever forward to increase ground speed. Change speed range switch to higher speed range when engine reaches maximum RPM.

IMPORTANT: While under a load, engine and drivetrain overheating can occur if engine drops below 2000 RPM's for an extended period. Pull back slightly on hydro lever to reduce engine load. Maintain at least 2200 RPM at all times.

5. To reverse direction of travel, move hydro lever (B) to neutral and bring machine to a complete stop, then move lever to the right and rear to back up machine.

6. Always shift to first speed range to achieve maximum tractive effort in reverse.

A-Speed Range Switch
B-Hydro Lever

AG,OUO1011,750 -19-07JUL99-3/4

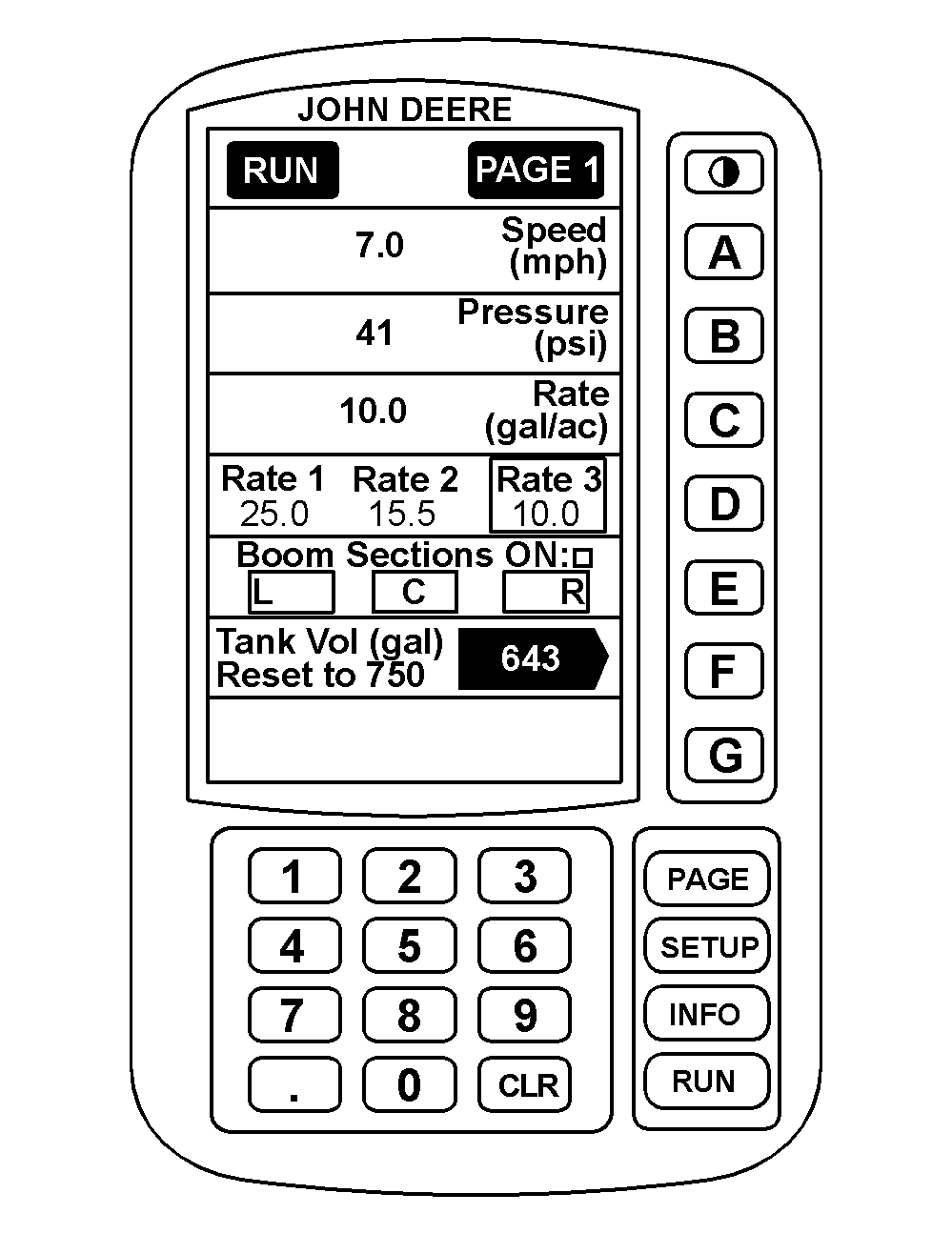

7. Press "RUN" key to view travel speed (mph) on monitor screen.

NOTE: Shift to a higher speed range only when maximum RPM are reached in current speed range. Always shift down to a lower speed range when maximum RPM are not maintained in current speed range.

AG,OUO1011,750 -19-07JUL99-4/4
