Parking the Machine

1. To slow and stop the machine, slowly return the hydro lever (A) to "PARK".

NOTE: The parking brake will automatically be applied when SPRAYSTAR ™ system reads "0" mph for 5 seconds and hydro lever is in "PARK" position or when engine is turned "OFF". Emergency brake switch DOES NOT need to be applied.

2. Press downward and hold on throttle switch (B) to reduce engine speed to slow idle.

3. Turn all lights and accessories "OFF".

IMPORTANT: To prevent engine damage, before stopping engine that has been operating at working load, idle engine for at least 2 minutes to cool hot engine parts.

4. Turn key to "OFF" position and remove key.

5. Lower ladder.

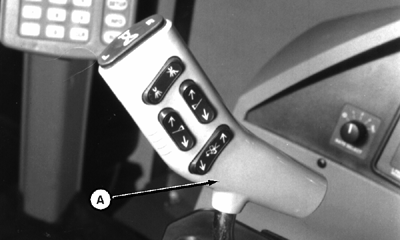

A-Hydro Lever

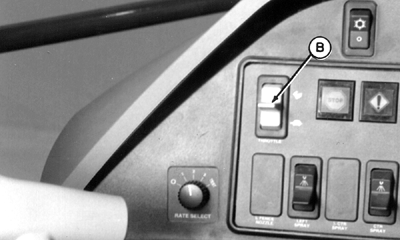

B-Throttle Switch

SPRAYSTAR is a trademark of Deere & Company.

AG,OUO1011,752 -19-07JUL99-1/1
