Adjusting Wheel Tread- (With Hydraulic Tread Adjust Option)

NOTE: Wheels can be adjusted to any wheel spacing between 3048 mm (120 in.) and 3861 mm (152 in.)

Speed range switch must be in first speed range for tread adjust to work.

1.

IMPORTANT: Machine damage can occur to suspension and wheel assembly if tread width is adjusted when machine is stopped or when machine is moving over 3 km/h (2 mph).

Start machine, place speed range switch (A) in first speed range and drive forward slowly.

A-Speed Range Switch

AG,OUO1011,753 -19-07JUL99-1/4

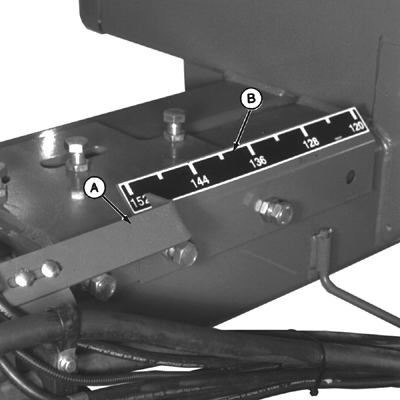

NOTE: When adjusting wheel tread spacing, use indicators (A) and decals (B) at front and rear of machine. When indicators are at desired wheel tread setting, stop machine and verify wheel tread setting.

NOTE: If machine is not equipped with hydraulic tread adjust, switches will be inoperative.

A-Indicators
B-Decals

AG,OUO1011,753 -19-07JUL99-2/4

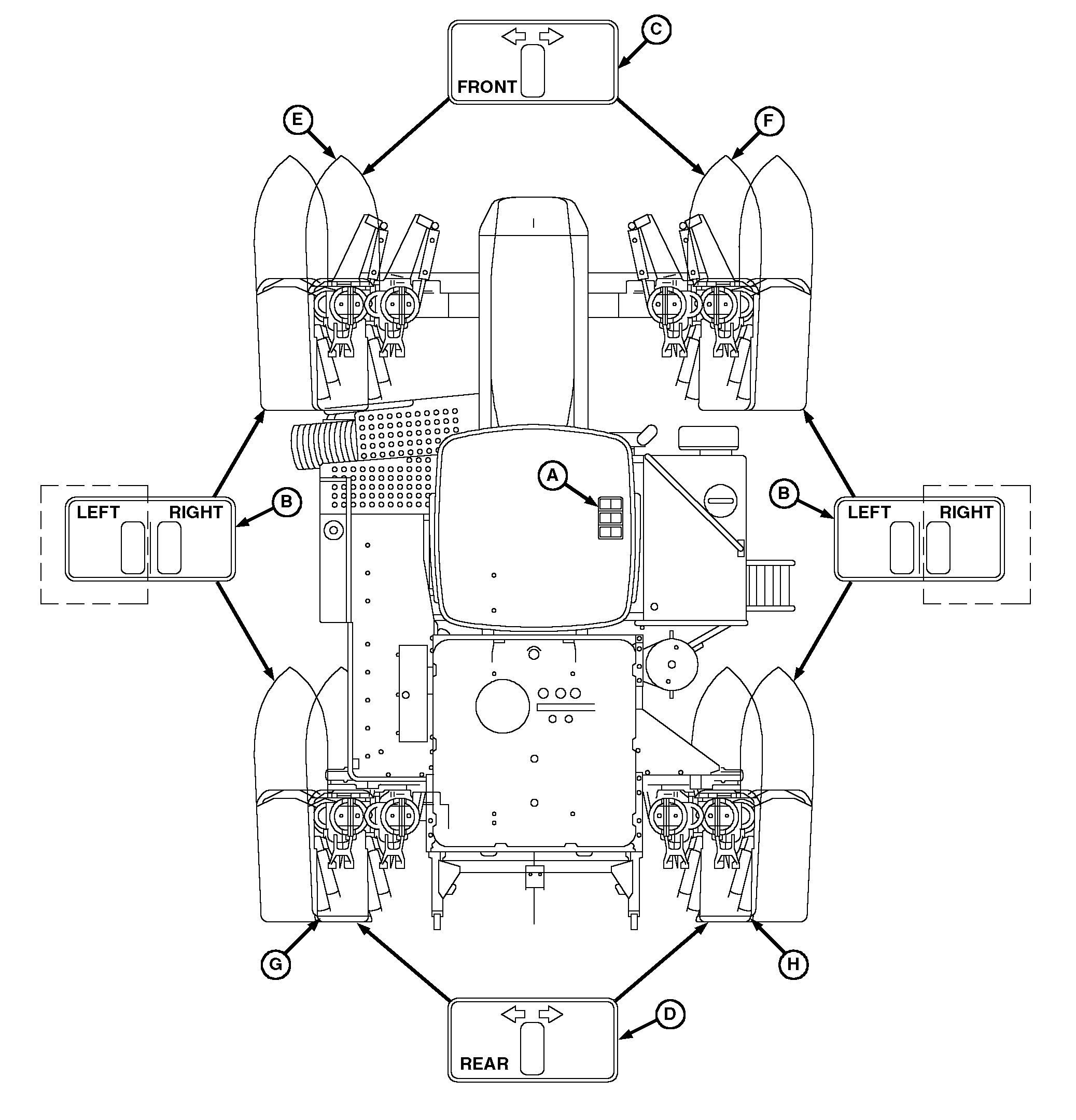

A-Switches
B-Switch, "Left"/"Right"

C-Switch, "Front"
D-Switch, "Rear"

E-Wheel, Left-Hand Front
F-Wheel, Right-Hand Front

G-Wheel, Left-Hand Rear
H-Wheel, Right-Hand Rear

NOTE: Both wheels on either side of machine may be adjusted at the same time if desired.

2. Adjust wheel spacings using switches (A) located under armrest pad behind hydro lever.

3. Adjust left-hand front wheel (E) or right-hand front wheel (F) in or out by pressing and holding down appropriate side of "Left"/"Right" switch (B) and in or out "Front" switch (C) until desired setting is achieved.

AG,OUO1011,753 -19-07JUL99-3/4

4. Adjust left-hand rear wheel (G) or right-hand rear wheel (H) in or out by pressing and holding down appropriate side of "Left"/"Right" switch (B) and in

AG,OUO1011,753 -19-07JUL99-4/4
