Adjusting Front and Rear Suspension Assemblies

CAUTION: Air spring can explode if overinflated causing serious injury or death to you or others. When adjusting suspension assemblies, do not exceed 689 kPa (6.89 bar) (100 psi). Keep hands and body away from suspension linkage.

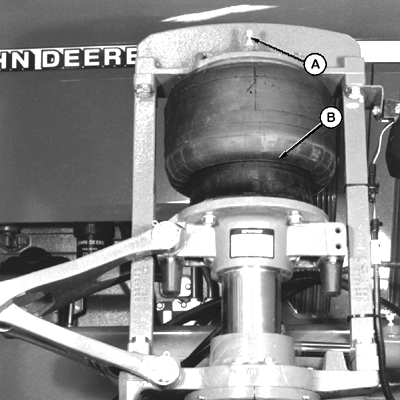

1. Connect air hose to front air valves (A). Inflate front air springs (B) to specification.

Specification

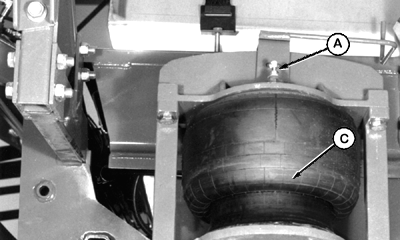

2. Connect air hose to rear air valves (A). Inflate rear air springs (C) to specification.

Specification

A-Air Valves
B-Front Air Spring
C-Rear Air Spring

AG,OUO1011,755 -19-08JUL99-1/2

3. Fill solution tank half full. (Refer to Section 25 to fill solution tank.)

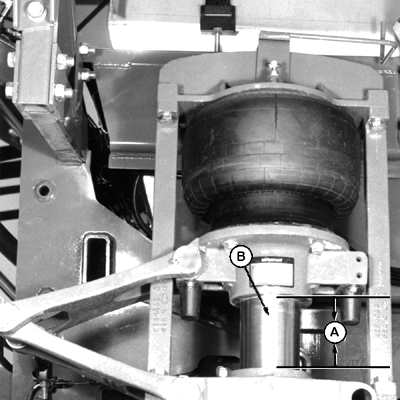

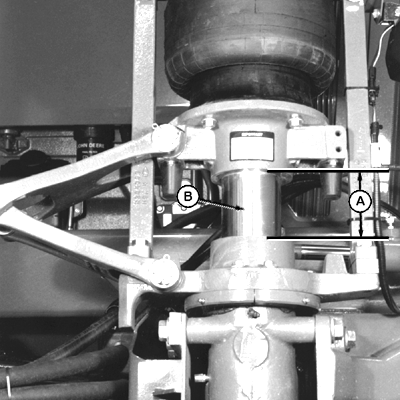

4. Adjust air pressure in air springs until 102 mm (4 in.) (A) of shaft (B) is exposed on all four shafts.

5. Drive machine.

6. Verify 102 mm (4 in.) of shaft is exposed on each shaft.

7. If not, repeat steps 3, 4 and 5 until 102 mm (4 in.) distance is maintained on each shaft.

NOTE: If 102 mm (4 in.) cannot be achieved, do not inflate air springs beyond 689 kPa (6.89 bar) (100 psi).

A-Measurement of 102 mm (4 In.)
B-Shaft

AG,OUO1011,755 -19-08JUL99-2/2
