Preparing Machine with 18.3 m (60 ft) Boom for Transport on Semi-Tractor Trailer

1. Empty solution tank and rinse tank.

AG,OUO1011,759 -19-08JUL99-1/8

2. Deflate suspension air springs (A).

3. Set wheels at 3048 mm (120 in.) tread setting.

A-Suspension Air Springs

AG,OUO1011,759 -19-08JUL99-2/8

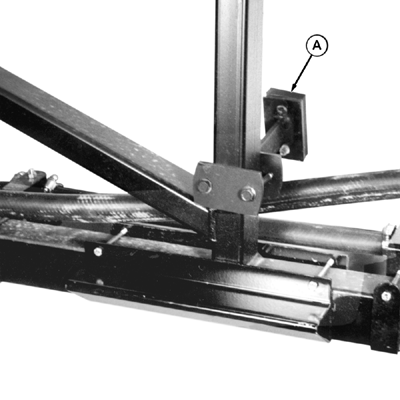

4. Remove boom stop (A) from each boom.

A-Boom Stop

AG,OUO1011,759 -19-08JUL99-3/8

5. Remove foamer boot (A) (if equipped) at end of each boom.

A-Foamer Boot

AG,OUO1011,759 -19-08JUL99-4/8

IMPORTANT: Damage to boom or handrails can occur when fold cylinders are adjusted to bring booms in all the way. Use caution when folding booms.

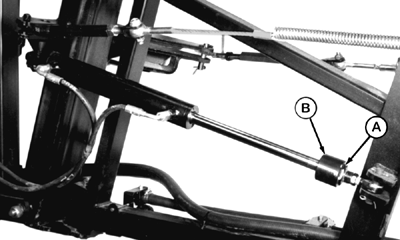

6. Loosen jam nut (A) out as far as possible on the fold cylinders located between center section and intermediate sections of boom.

7. Adjust collar (B) out against jam nut on each cylinder.

A-Jam Nut
B-Collar

AG,OUO1011,759 -19-08JUL99-5/8

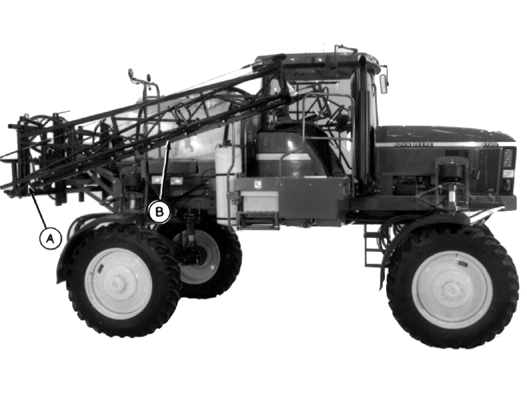

8. Tie outer boom assemblies to the intermediate boom sections at points (A) and (B).

9. Tie band booms to handrails.

AG,OUO1011,759 -19-08JUL99-6/8

10. Raise ladder (A) on right-hand side of machine and tie band in transport position.

A-Ladder

AG,OUO1011,759 -19-08JUL99-7/8

11. Fold cab mirrors in and place antenna in retainer (A) on cab roof.

12. Drive machine onto trailer or truck.

13. Raise ladder on left-hand side of machine and carefully get down from machine.

A-Antenna Retainer

AG,OUO1011,759 -19-08JUL99-8/8
