Preparing Machine with 24.4 and 27.4 m (80 and 90 ft) Boom for Transport on Semi-Tractor Trailer

1. Empty solution tank and rinse tank.

AG,OUO1011,760 -19-08JUL99-1/6

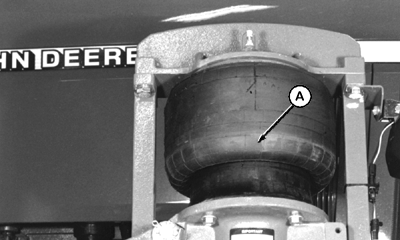

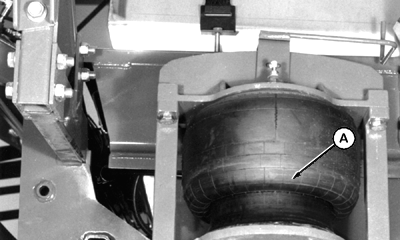

2. Deflate suspension air springs (A).

3. Set wheels at 3048 mm (120 in.) tread setting.

A-Suspension Air Springs

AG,OUO1011,760 -19-08JUL99-2/6

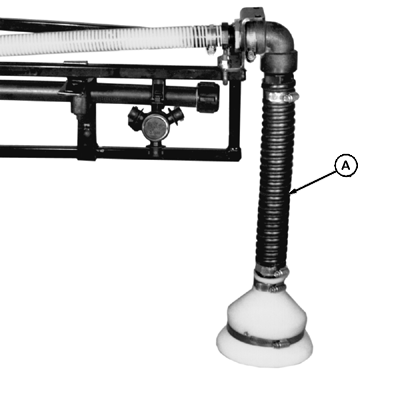

4. Remove foamer boot (A) (if equipped) at end of each boom.

A-Foamer Boot

AG,OUO1011,760 -19-08JUL99-3/6

5. Tie outer boom assemblies to the intermediate boom sections at point (A) and tie boom to transport cradle at point (B).

AG,OUO1011,760 -19-08JUL99-4/6

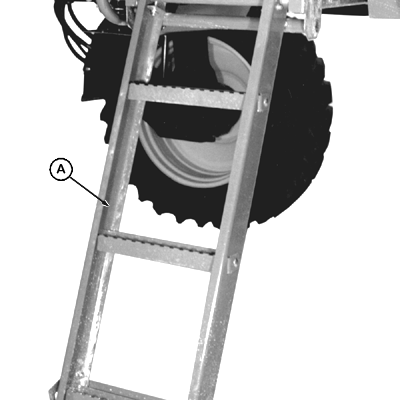

6. Raise ladder (A) on right-hand side of machine and tie band in transport position.

A-Ladder

AG,OUO1011,760 -19-08JUL99-5/6

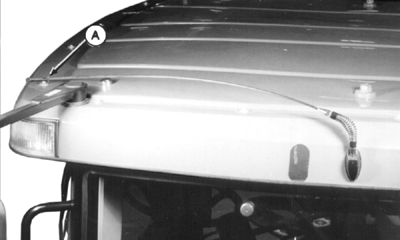

7. Fold cab mirrors in and place antenna in retainer (A) on cab roof.

8. Drive machine onto trailer or truck.

A-Antenna Retainer

AG,OUO1011,760 -19-08JUL99-6/6
