Operating in the Field1. Press raise/lower switch (A) to position boom at desired operating height.
|
|
AG,OUO1011,762 -19-08JUL99-1/7 |
|

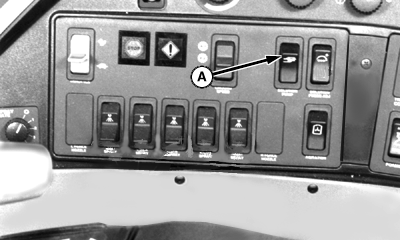

2. Press top of solution pump switch (A) to engage solution pump.
|
|
AG,OUO1011,762 -19-08JUL99-2/7 |
|
3. Press "RUN" button to view spray operation display on monitor screen. |
|
AG,OUO1011,762 -19-08JUL99-3/7 |
|

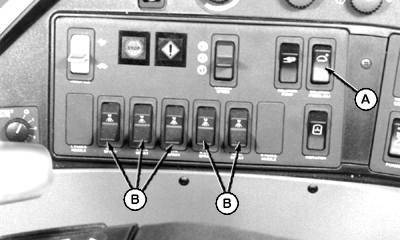

4. Turn rate control switch (A) to desired application rate (1, 2 or 3) or to manual pressure setting (0). NOTE: Rate selected will have a square around selected rate on monitor screen. "Test" position on rate control switch is not used.
|
|
AG,OUO1011,762 -19-08JUL99-4/7 |
|
5. Push hydro lever (A) slowly forward to start forward motion.
|
|
AG,OUO1011,762 -19-08JUL99-5/7 |
|

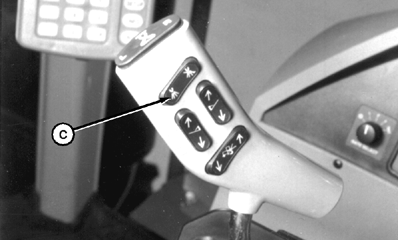

6. If operating in manual pressure mode: Press top of increase/decrease switch (A) to raise pressure or press bottom of switch to lower pressure. NOTE: The desired pressure settings can also be programmed into the SPRAYSTAR ™ display. 7. Lift boom section switches (B). 8. Verify that boom switches are turned on and press master ON/OFF switch (C) to start spraying operation. NOTE: On Page 1 of RUN display, a square will be around the sections that are spraying.
|
|
|
SPRAYSTAR is a trademark of Deere & Company. | AG,OUO1011,762 -19-08JUL99-6/7 |
|

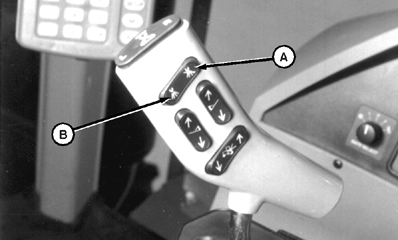

NOTE: Spray system shut-down is not immediate. Solution flow will continue for a short period of time (approximately 1-3 seconds) after pressing OFF switch. For best response time and coverage, turn spray OFF as you slow for row end. 9. At row end, depress right-hand side of master ON/OFF switch (A) to stop spraying. All other switches can remain in pre-set positions. NOTE: Spray system start-up is not immediate. To overcome delayed response, press ON switch while moving forward to start spraying just before solution is actually needed. 10. When aligned with next row, press left-hand side of master ON/OFF switch (B) to resume spraying. |
|
