Checking Engine Oil Level

With machine parked on level surface, remove engine oil dipstick (A) and check oil level. Oil level should be between "ADD" and top of cross-hatch area of dipstick. See LUBRICATION AND MAINTENANCE in this manual for engine oil specifications. Do not operate with oil below "ADD" mark on dipstick. Add oil if necessary.

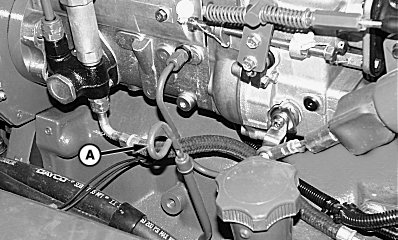

A-Engine Oil Dipstick

AG,OUO1011,771 -19-09JUL99-1/1
