Checking Hydrostatic and Hydraulic Oil Level

NOTE: Place booms in boom rests and retract all hydraulic cylinders including tread adjust cylinders if checking oil level.

Hydraulic system capacity is approximately 163 L (43 gal) and reservoir capacity is 64 L (17 gal).

AG,OUO1011,778 -19-15JUL99-1/2

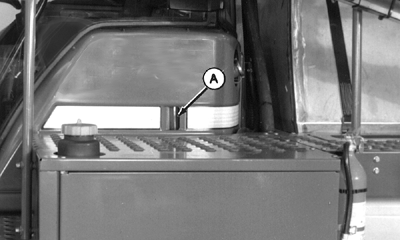

Oil should be at the 1/2 to 2/3 level on the sight tube (A). Add oil if necessary. ( See LUBRICATION AND MAINTENANCE in this manual for hydraulic oil specifications.)

A-Sight Tube
