Filling Fuel Tank

causym CAUTION: Shut off engine before filling fuel tank.

NOTE: Fuel tank capacity is 322 L (85 gal).

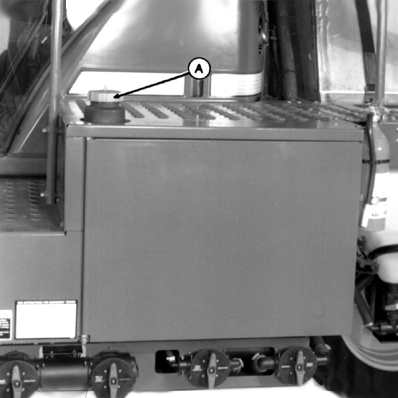

Remove fuel tank cap (A). Fill tank with proper grade diesel fuel. (See LUBRICATION AND MAINTENANCE in this manual for diesel fuel specifications.)


A-Fuel Tank Cap

N42173RL

AG,OUO1011,779 -19-15JUL99-1/1
