Bleeding Fuel System

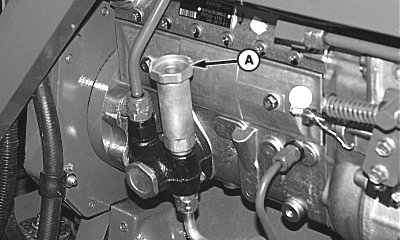

1. Rotate cap (A) on fuel primer counterclockwise until plunger releases.

2. Pull up on cap until top of stroke is reached then push down. Repeat until pressure is felt. Push down on plunger and rotate cap clockwise until tight to lock down plunger.

3. Start engine. If engine does not start, repeat procedure.

4. If engine will not start, see TROUBLESHOOTING section in this manual or your John Deere dealer.

A-Cap

AG,OUO1011,781 -19-15JUL99-1/1
