OMN303758: 4700 Self-Propelled Sprayer(N04700X006001- ), Block File: AG_OUO1011_808_19

Adjusting Side Gap on Axle Tread Adjust

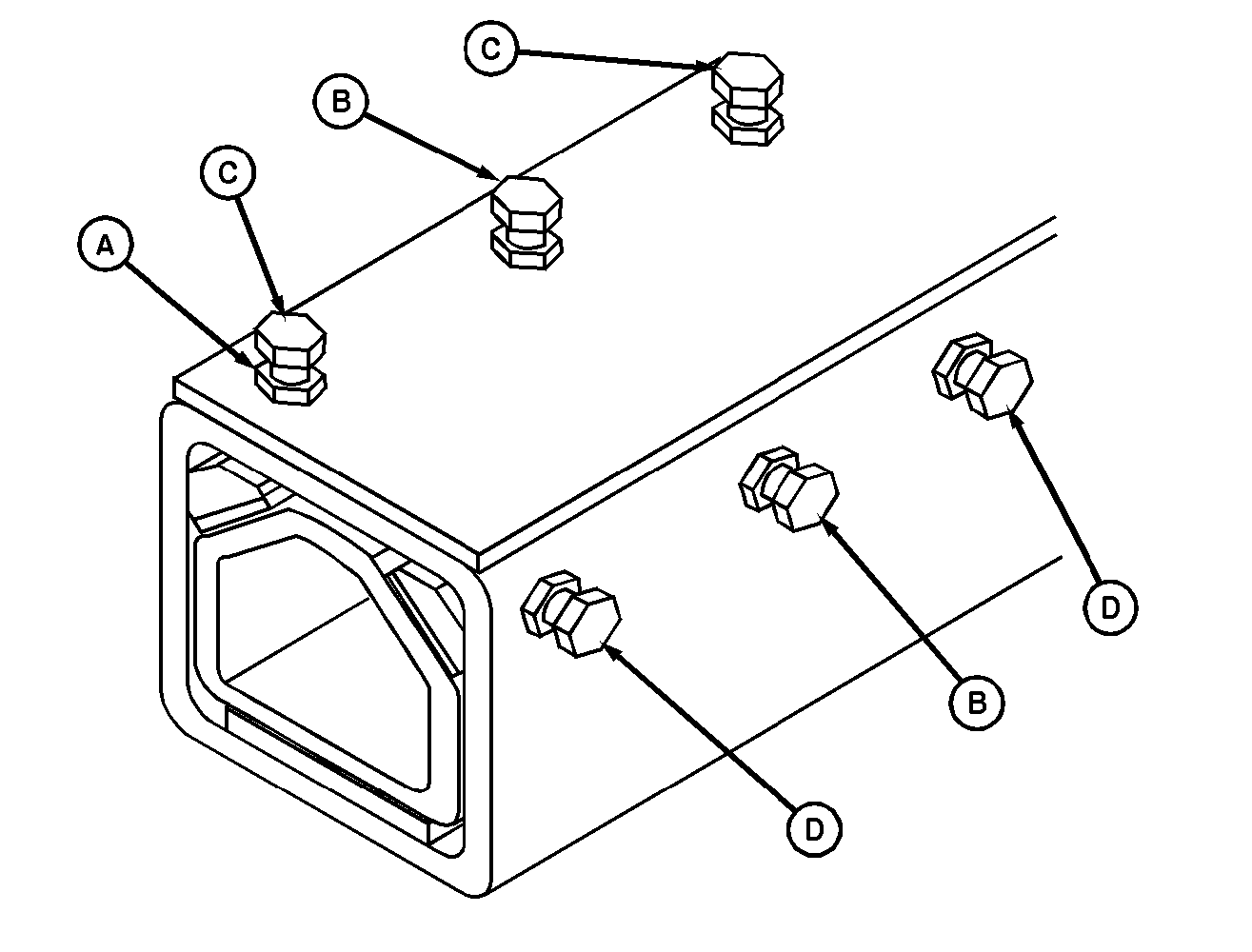

Left-Hand Front Shown

A-Jam Nuts

B-Center Adjusting Bolts

C-Inner and Outer Adjusting Bolts (Side with Larger Gap)

D-Inner and Outer Adjusting Bolts (Side with Smaller Gap)

1. Loosen jam nuts (A) on all six adjusting bolts.

2. Loosen two center adjusting bolts (B).

3. On side of mainframe tube with largest gap, loosen the inner and outer adjusting bolts (C) 1/2 turn.

4. Tighten either the inner, outer or both adjusting bolts (D) on side with smaller gap 1/2 turn.

5. Measure side gap again. If equal on both side of knee and on both ends of knee, proceed to Adjusting Shim Gap on Axle Tread Adjust in this section.

If gap is not equal, repeat Steps 4 and 5 until gap is equal.

AG,OUO1011,808 -19-20JUL99-1/1
