Installing Fire Extinguisher (If Equipped)

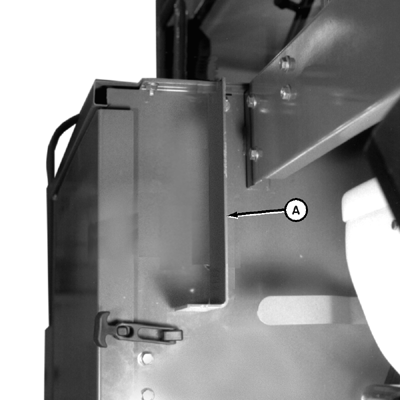

1. Attach bracket (A) to machine with two M10 x 25 flanged cap screws.

A-Bracket

AG,OUO1011,812 -19-20JUL99-1/3

2. Attach bracket (A) to bracket (B) with three M6 x 16 flanged cap screws and serrated nuts.

A-Bracket
B-Bracket

AG,OUO1011,812 -19-20JUL99-2/3

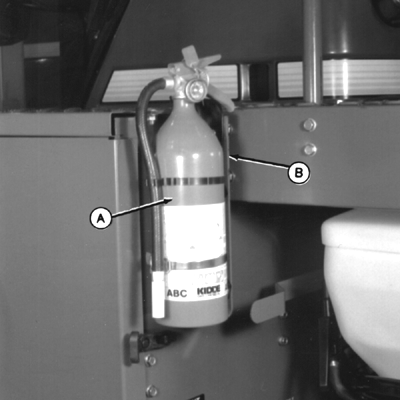

3. Install fire extinguisher (A) in bracket assembly (B).

A-Fire Extinguisher
B-Bracket Assembly
