Using a Booster Battery

CAUTION: Gas given off by batteries is explosive and can cause serious injury or death to you or others. Keep sparks and flames away from batteries. Make last connection and first disconnection at a point away from booster battery.

IMPORTANT: Be sure polarity is correct before making connections. Reversed polarity will damage electrical system or possibly cause an explosion of a battery.

1. Remove covers from remote terminals.

2. Attach positive battery cable (red) to the positive remote terminal (A) and positive terminal of booster battery.

3. Attach the negative battery cable (black) to negative terminal of booster battery. Attach other end to the negative remote terminal (B) of machine.

4. To disconnect, remove cables in reverse order of connection.

5. Place covers on remote terminals.

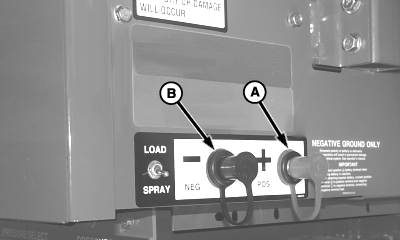

A-Positive Remote Terminal
B-Negative Remote Terminal

AG,OUO1011,813 -19-20JUL99-1/1
