Replacing Roof Front Flood Light

1. Remove screws (A) holding lamp bezel in roof.

2. Remove screws (B) to remove lamp from bezel.

3. Disconnect lamp from connector (C) and connect new lamp.


A-Screws
B-Screws
C-Connector

RW55420

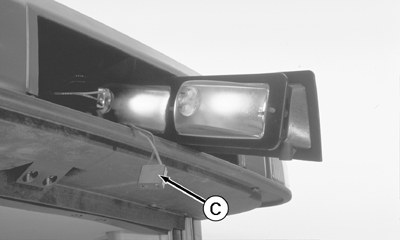

RW55421

AG,OUO1011,818 -19-20JUL99-1/1
