Replacing Roof Rear Flood Light-Optional

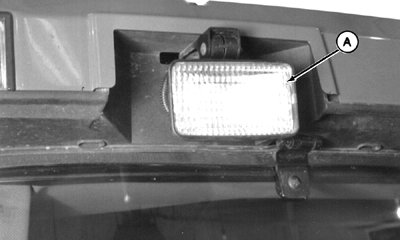

1. Disconnect electrical connector from lamp (A).

2. Remove lamp bracket hardware and remove lamp.

3. Attach new lamp to machine with mounting hardware previously removed.

4. Connect electrical connector to lamp.

A-Lamp

AG,OUO1011,821 -19-20JUL99-1/1
