Aiming Headlights

1. Empty sprayer solution tank.

2. Park machine on level ground with lights 8 m (25 ft) from a wall.

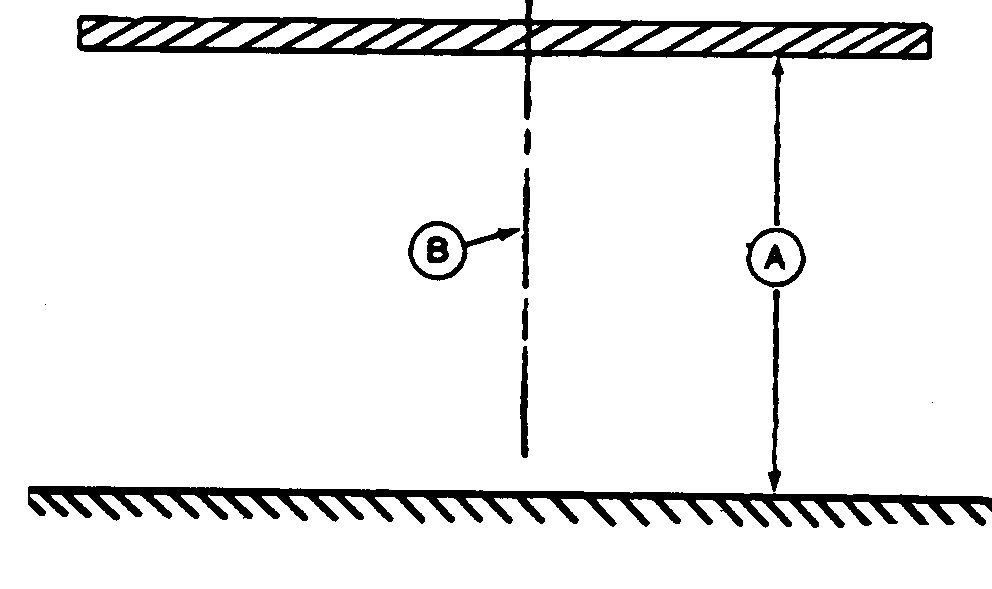

3. Measure height of headlights above the ground, and place a strip of masking tape on wall at same height (A).

4. Sight across steering wheel and hood ornament to locate machine centerline. Mark this spot on tape (B).

RW4890


A-Headlight Height
B-Machine Centerline

AG,OUO1011,823 -19-20JUL99-1/3

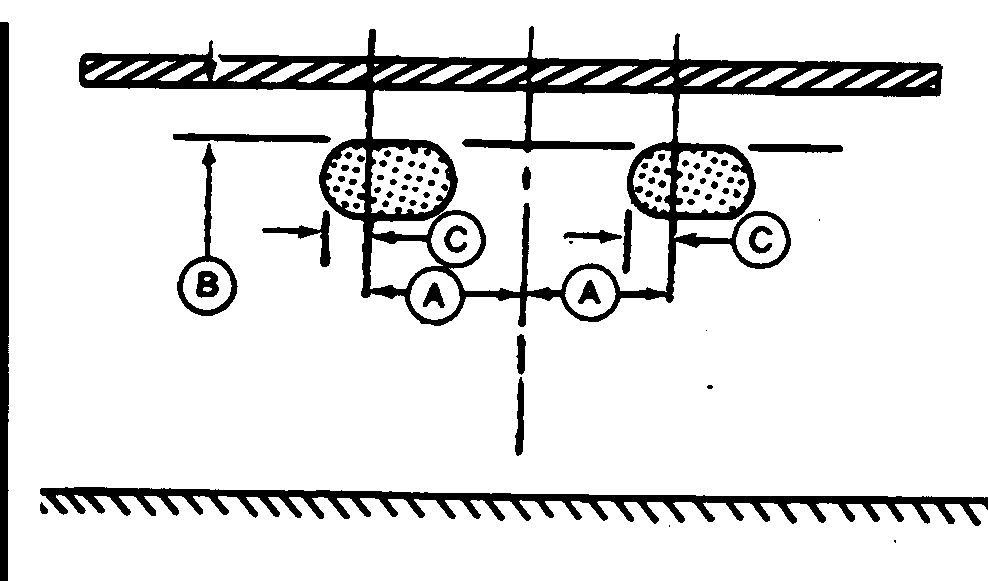

5. From machine centerline mark a point 920 mm (36 in.) out in each direction (A). This mark locates a point directly in front of each lamp center.

6. Turn light switch to low beam.


A-36 In. From Machine Centerline- Both Directions
B-Top of Zone
C-Left Edge of Zone

RW4891

AG,OUO1011,823 -19-20JUL99-2/3

7. Locate small zone of bright light projected by each lamp. Cover other lamps if necessary. Top of zone (B) should be 127 mm (5 in.) below tape. Left edge of zone (C) should be 127 mm (5 in.) left of lamp location mark (A).

8. Adjust headlights by turning self-locking screws on the inner top (A) and inner-bottom (B) of each light.

Beam Direction Screw Adjustment
Raise Turn Screw (A) Counterclockwise
Turn Screw (B) Clockwise

Lower Turn Screw (A) Clockwise
Turn Screw (B) Counterclockwise

Inward Turn Screw (A) and (B)
Counterclockwise

Outward Turn Screw (A) and (B)
Clockwise


RW20731


A-Inner Top of Light
B-Inner Bottom of Light

AG,OUO1011,823 -19-20JUL99-3/3
