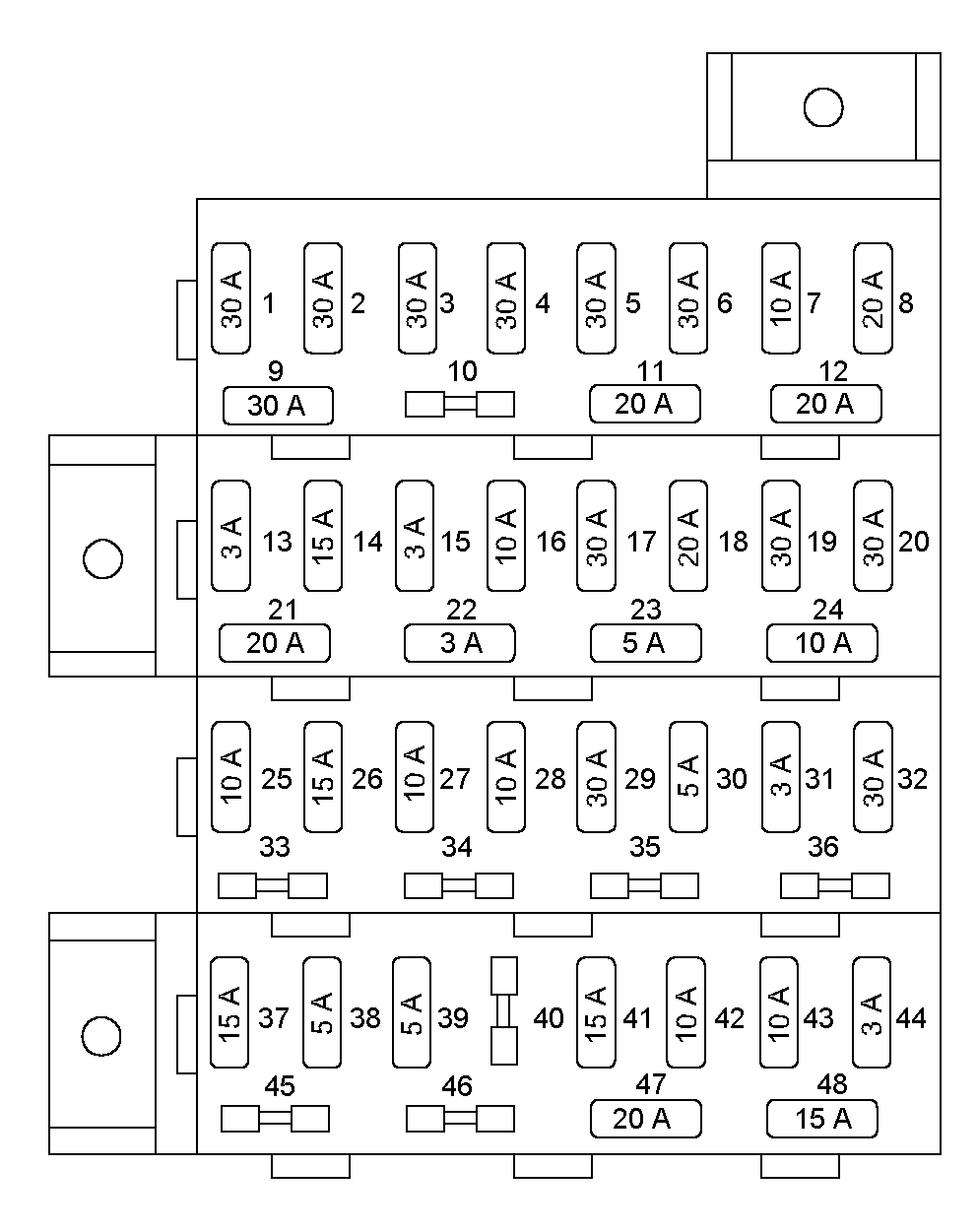

Load Center Fuses
1-Key Switch (30 amp)
2-Accessories (30 amp)
3-Light Switch (30 amp)
4-Bright and Dim Headlights (30 amp)
5-Roof Lights (30 amp)
6-Auxiliary Lights (30 amp)
7-Horn and Bright Light Relay (10 amp)
8-Hazard, Turn Signal Lights (20 amp)
9-Ladder (30 amp)
10-Spare
11-Front Wiper (20 amp)
12-Rear Wiper (20 amp)
13-Hydro Handle (3 amp)
14-Boom (15 amp)
15-Pulse (3 amp)
16-Hydraulic Load Sense (10 amp)
17-Auxiliary Plug (30 amp)
18-Blower (20 amp)
19-Blower (30 amp)
20-Seat (30 amp)
21-Ignition (20 amp)
22-SPRAYSTAR™ Display (3 amp)
23-Boom Select (5 amp)
24-Air Conditioning (10 amp)
25-Turn Signal Switch (10 amp)
26-Ground Speed/Tread Adjust/Traction Control (15 amp)
27-Throttle (10 amp)
28-Park Brake (10 amp)
29-Auxiliary Plug (30 amp)
30-Radio Memory, Dome Lights (5 amp)
31-CCU Memory (3 amp)
32-Lighter (10 amp)
33-Spare
34-Spare
35-Spare
36-Spare
37-CCU Drive (15 amp)
38-CCU Logic (5 amp)
39-RS232 (5 amp)
40-Spare
41-Solution Pump (15 amp)
42-Boom Section Spray Switches (10 amp)
43-Radio (10 amp)
44-Cab Blower Relay (3 amp)
45-Spare
46-Spare
47-Agitation (20 amp)
48-Foam Marker (15 amp)
|
|
