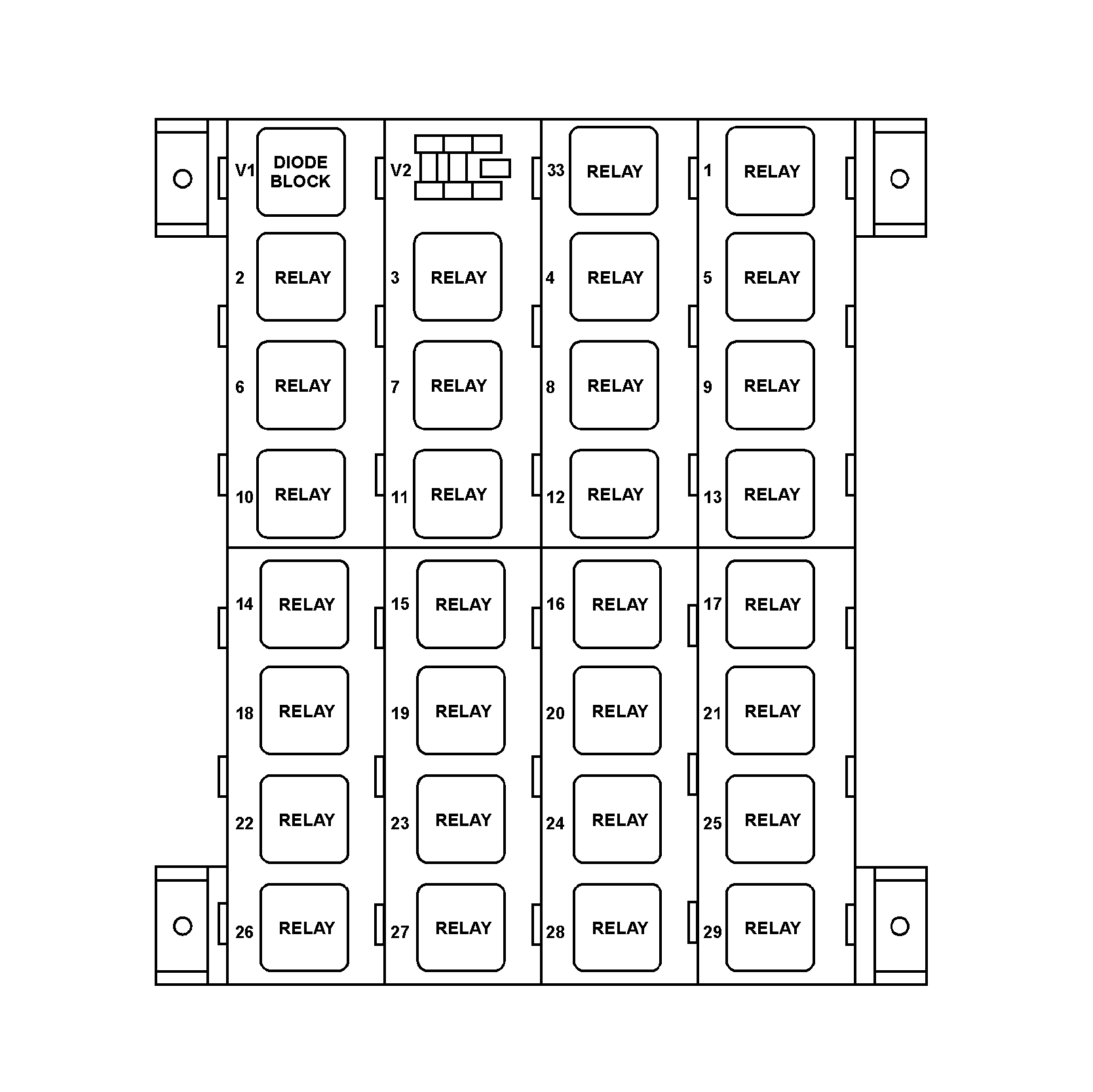

V1-Flash Lamp Diodes-Roof Lamp Control Diodes
V2-Spare
1-Right Foamer Relay
2-Electronics Power Relay
3-Accessory Power Relay
4-Traction Control Relay
5-Left Foamer Relay
6-Wiper Relay
7-Wiper Latch Relay
|
8-Wiper Pulse Relay
9-Cab Blower Relay
10-Cab Blower Purge Relay
11-Pressure Blower Relay
12-Left-Hand Boom Raise Relay
13-Left-Hand Boom Lower Relay
14-Center Frame Raise Relay
15-Center Frame Lower Relay
|
16-Right-Hand Boom Raise Relay
17-Right-Hand Boom Lower Relay
18-Park Brake Relay
19-Hydro Lever, Neutral Switch
20-Auxiliary Plug Relay
21-Horn Relay
22-Roof Lights Relay
|
23-Auxiliary Lights Relay
24-Dim Lights Relay
25-Bright Lights Relay
26-Right-Hand Turn Relay
27-Left-Hand Turn Relay
28-Right-Hand Taillight Relay
29-Left-Hand Taillight Relay
33-Load Sense Jamming Relay
|
