OMN303758: 4700 Self-Propelled Sprayer(N04700X006001- ), Block File: AG_OUO1011_843_19_20JUL99.htm

Boom Flow Characteristics-Application Rate vs. Speed

N42184IL

AG,OUO1011,843 -19-20JUL99-1/3

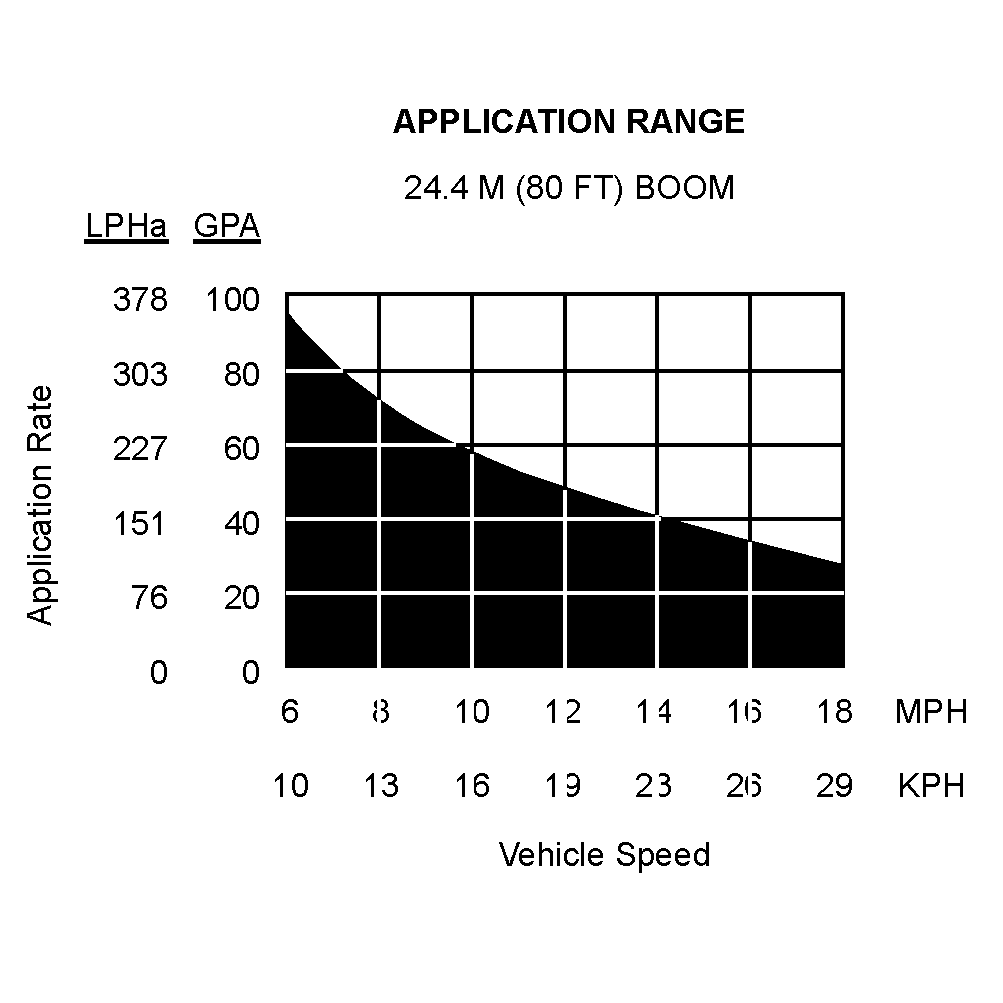

N42184IM

AG,OUO1011,843 -19-20JUL99-2/3

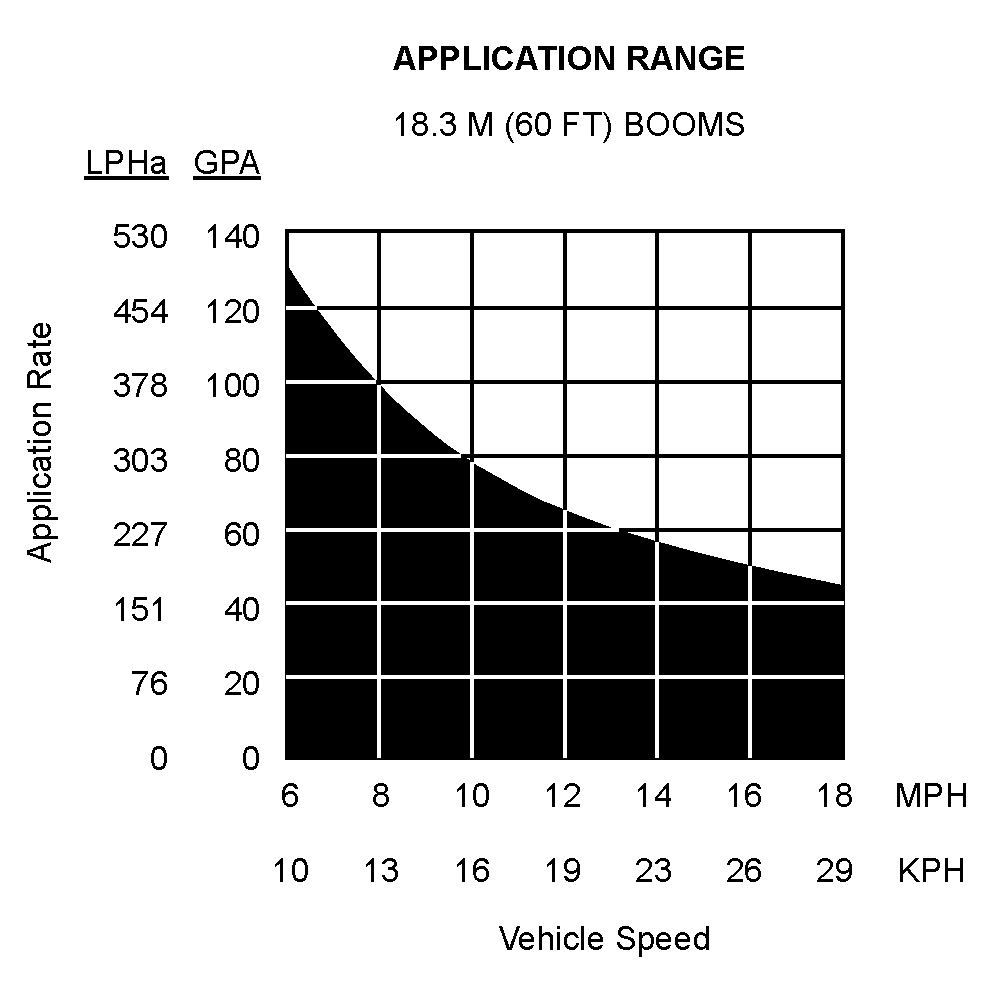

N42184ZP

AG,OUO1011,843 -19-20JUL99-3/3
