Cleaning TEEJET® Triplet Nozzle Bodies

CAUTION: Keep spare nozzle tips for field replacement. DO NOT clean nozzle tips by placing in mouth and blowing or you could swallow or inhale hazardous chemicals which will poison, causing serious injury or death to you or others.

IMPORTANT: Do not allow solvent or diesel fuel to contact rubber washers in caps as it will cause deterioration.

NOTE: Spraying Systems Triplet nozzle bodies are optional equipment. See your John Deere dealer.

1. Clean periodically and any time irregular or uneven spray patterns are noticed.

2. Wash in soapy water using a soft bristle brush to clean.

NOTE: Service life of plastic nozzle tips can be greatly extended through careful cleaning. Do not use metal tools for cleaning as they can scratch hardened surfaces which will accelerate wear and shorten service life.

After cleaning triplet body, apply a silicone based lubricant to large O-ring on triplet body.

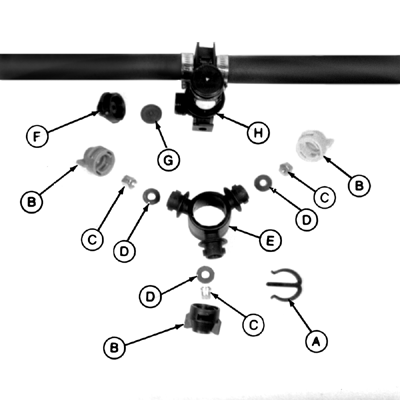

A-Retainer Clip
B-Nozzle Cap
C-Spray Tip
D-O-Ring
E-Tip Holder
F-Check Valve
G-Diaphragm
H-Triplet Body

TEEJET is a trademark of Spraying System Co.

AG,OUO1011,852 -19-22JUL99-1/1
