Cleaning Boom Filter-As Required

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Clean filter in a area where people, animals, vegetation and water supply etc. cannot be contaminated.

NOTE: Clean boom filter if the following conditions exist:

Pump will not prime

Pump fails to obtain maximum flow rate

Pump fails to maintain dead head pressure

Application rates fluctuate

1. Turn valve (A) to "SOLUTION TANK" position.

2. Close valves (B), (C), and (D).

3. Open valve (E) and collect solution in a bucket or suitable container.

A-Valve, Tank Selector
B- Valve, Solution Tank Open/Close
C-Valve, Tank Rinse Nozzles/Eductor
D- Valve, Bypass/Boom Spray
E-QUIK-FILL™ Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,854 -19-22JUL99-1/3

CAUTION: Do not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation and water supply, etc., cannot be contaminated.

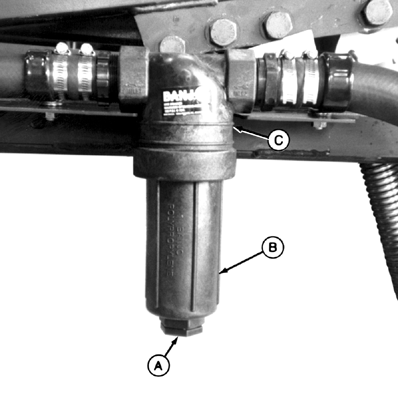

4. Remove plug (A) to allow strainer to drain.

5. Remove cover (B) from strainer housing (C).

A-Plug
B-Cover

AG,OUO1011,854 -19-22JUL99-2/3

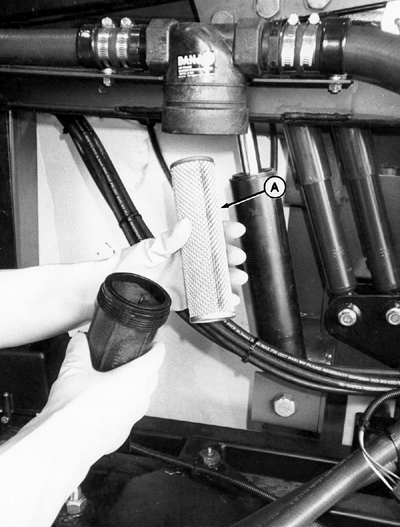

6. Remove screen (A) and wash with clean water.

7. Install screen and cover on housing.

8. Install plug.

A-Screen
