Operating Solution Tank Shut-Off Valve

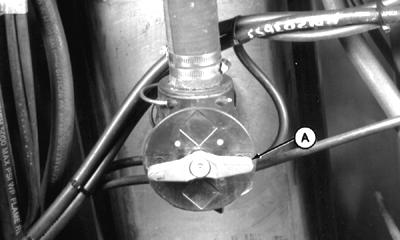

Shut-off valve (A) under solution tank is closed when arrow on valve handle is pointing at either circle (handle points to side of machine).

Arrow on valve handle should point towards "FRONT" of machine when solution system is in operation.

A-Shut-Off Valve

AG,OUO1011,857 -19-22JUL99-1/1
