Filling Rinse Tank (If Equipped)

NOTE: Rinse tank is located on right-hand side of machine below the platform.

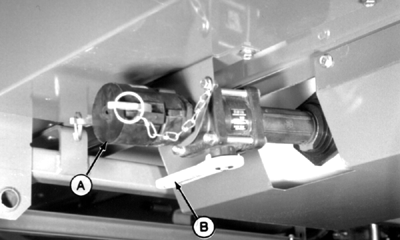

1. Remove cap (A).

2. Connect fill hose to adapter.

3. Open valve (B) and fill rinse tank.

4. After tank is finished filling, close valve and remove fill hose.

5. Install cap on adapter.

A-Cap
B-Valve

AG,OUO1011,858 -19-22JUL99-1/1
