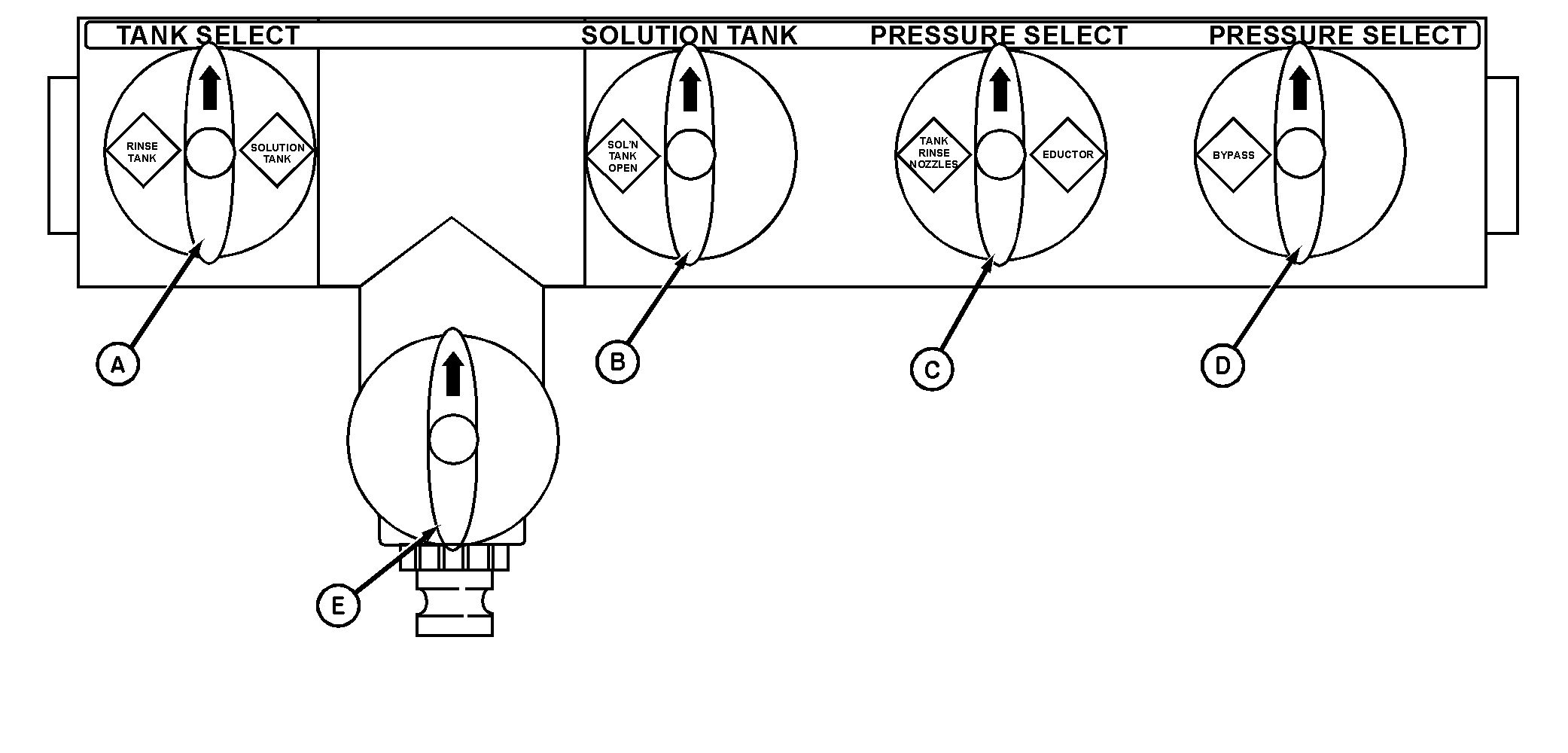

A-Tank Selector Valve

B-Solution Tank Open/Closed Valve

C-Tank Rinse Nozzles/Eductor Valve

D-Bypass Valve
E-Quik-Fill™ Valve

NOTE: For proper operation of valve manifold, see decal of valve operation located above

manifold inside storage compartment door on left-hand side of machine.

QUIK-FILL is a trademark of Deere & Company.
