Priming Solution Pump on Sprayer Equipped with Rinse Tank (Nurse Tank Fluid Level Even or Below Sprayer Pump)

NOTE: Sprayer pump may not pull solution into solution tank if fluid level in nurse tank is below solution pump on machine.

Filling rinse tank can only be done from right-hand side and cannot be filled using 4700 solution pump.

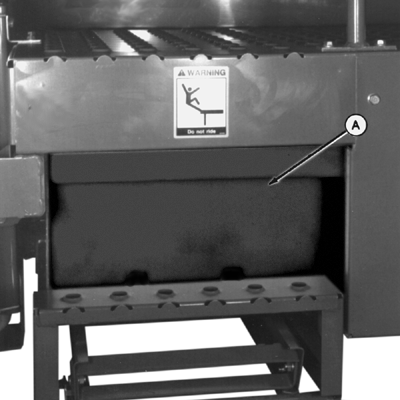

1. Fill rinse tank (A) on right-hand side of machine with clean water. See FILLING RINSE TANK in this section.

2. Operate engine at 1800 rpm.

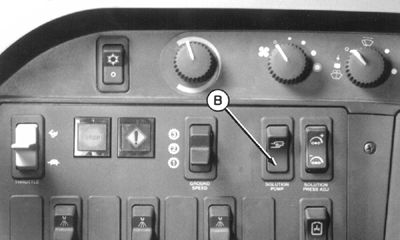

3. Turn off solution pump switch (B).

A-Rinse Tank
B-Solution Pump Switch

AG,OUO1011,861 -19-22JUL99-1/7

causym CAUTION: QUIK-FILL ™ valve can contain hazardous materials which can poison, causing serious injury or death to you or others. Before removing QUIK-FILL ™ cap, make sure Quik-Fill valve is turned off.

4. Pivot QUIK-FILL ™ down.

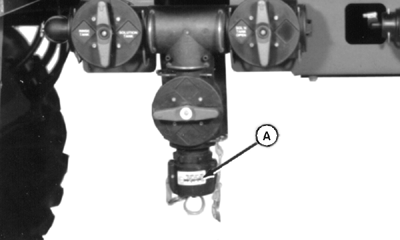

5. Open lock levers and remove cap (A).

6. Connect nurse tank fill hose to Quik-Fill ™ adapter and close lock levers.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,861 -19-22JUL99-2/7

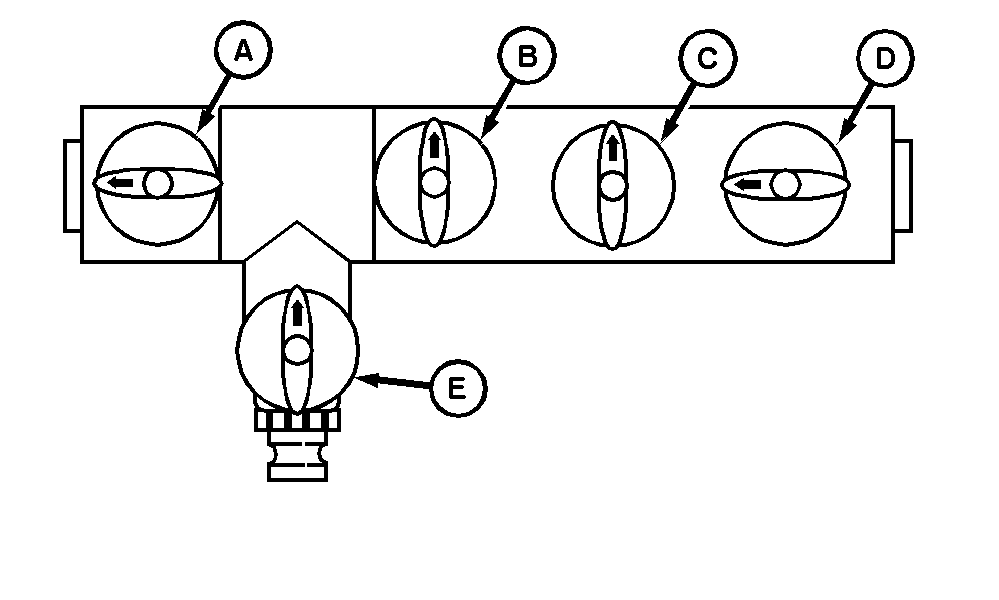

7. Close valves (B) and (C).

8. Turn valve (D) to "BYPASS" position.

9. Open QUIK-FILL ™ valve (E).

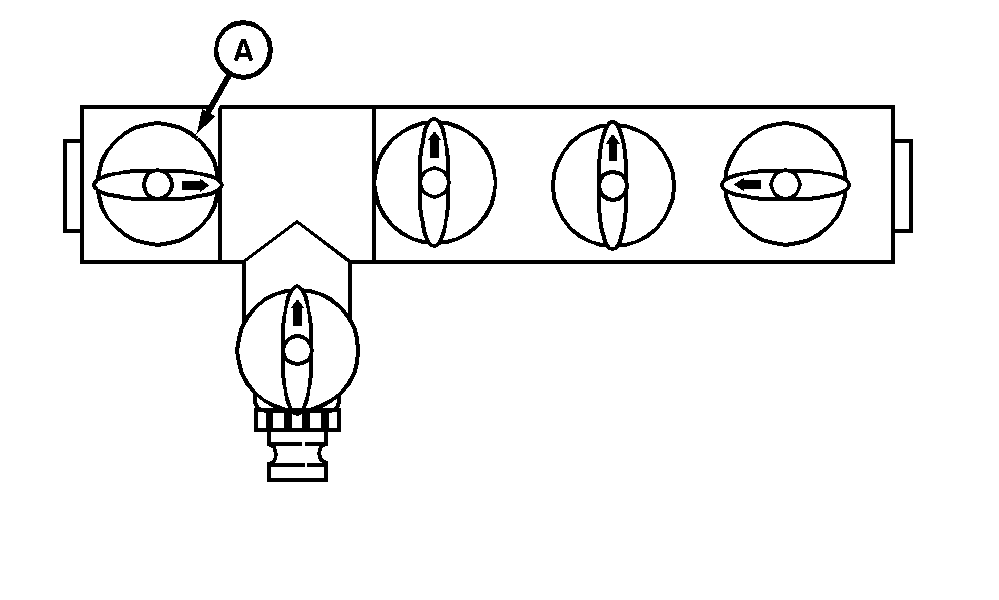

10. Turn valve (A) to "RINSE TANK" position for approximately 2 to 3 minutes.

A-Tank Selector Valve
B-Solution Tank Open/Close Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve
E-Quik-Fill™ Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,861 -19-22JUL99-3/7

NOTE: When using remote solution pump switch, pump is designed to come up to operating speed slowly.

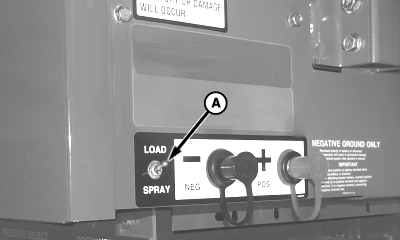

11. Move remote pump switch (A) to "LOAD" position.

12. Draw water from rinse tank for approximately 5 to 10 seconds.

A-Switch

AG,OUO1011,861 -19-22JUL99-4/7

13. With solution pump running, turn tank selector valve (A) to "SOLUTION TANK" position.

A-Tank Selector Valve

AG,OUO1011,861 -19-22JUL99-5/7

14. After solution tank has filled, turn valve (A) to "SOLUTION TANK OPEN" position while closing QUIK-FILL ™ valve (B).

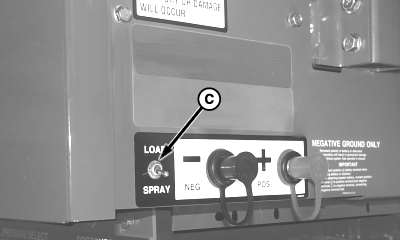

15. Move remote pump switch (C) to "SPRAY" position.

16. Turn valve (D) to "OFF" position.

A-Solution Tank Open/Closed Valve
B-Quik-Fill™ Valve
C-Remote Pump Switch
D-Bypass Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,861 -19-22JUL99-6/7

17. Remove fill hose from Quik-Fill adapter and replace cap (A).

18. Pivot QUIK-FILL ™ up.

A-Cap

QUIK-FILL is a trademark of Deere & Company.
