Filling Solution Tank with Sprayer Pump

CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous which could poison and injure you.

IMPORTANT: Do not add chemical to tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

1. Operate engine at 1800 rpm.

AG,OUO1011,862 -19-22JUL99-1/7

2. Turn off solution pump switch (A) in cab side console.

CAUTION: QUIK-FILL ™ valve can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing QUIK-FILL ™ cap make sure QUIK-FILL ™ valve is turned off.

3. Pivot QUIK-FILL ™ down.

A-Switch

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,862 -19-22JUL99-2/7

4. Open lock levers and remove cap (A).

5. Connect fill hose to QUIK-FILL ™ valve adapter and close lock levers.

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,862 -19-22JUL99-3/7

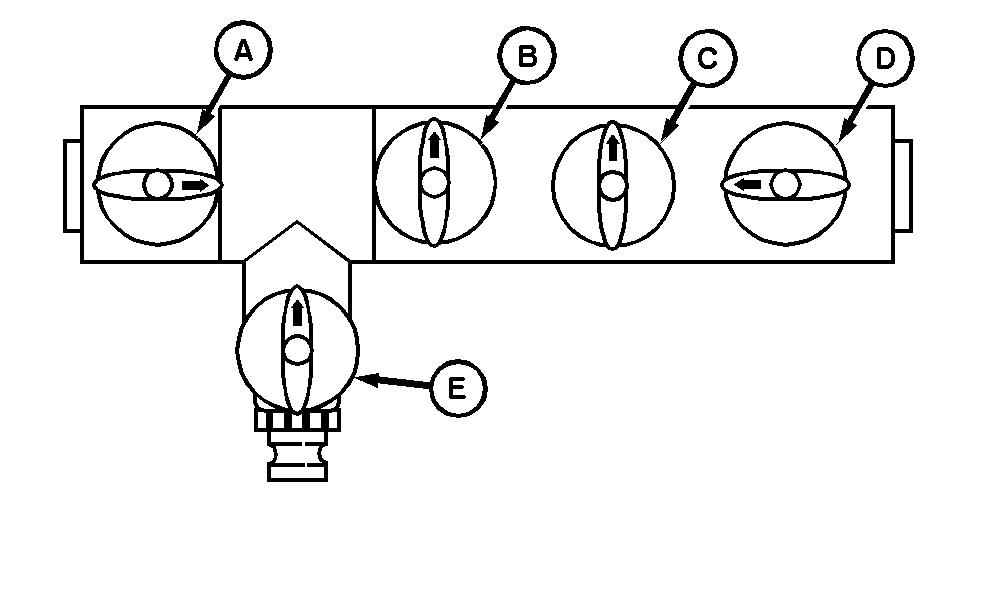

6. Turn valve (A) to "SOLUTION TANK" position.

7. Close valve (B) and valve (C).

8. Turn valve (D) to "BYPASS" position.

9. Open valve (E).

A-Tank Selector Valve
B-Solution Tank Open/Closed Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve
E-QUIK-FILL™ Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,862 -19-22JUL99-4/7

NOTE: When using remote solution pump switch, pump is designed to come up to operating speed slowly.

10. Move remote pump switch (A) to "LOAD" position.

A-Remote Pump Switch

AG,OUO1011,862 -19-22JUL99-5/7

11. After solution tank has filled, turn valve (A) to "SOLUTION TANK OPEN" position while closing valve (B).

12. Move remote pump switch (C) to "SPRAY" position.

13. Turn valve (D) to "OFF" position.

A-Solution Tank Open/Closed Valve
B-QUIK-FILL™ Valve
C-Remote Pump Switch
D-Bypass Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,862 -19-22JUL99-6/7

14. Remove fill hose from QUIK-FILL ™ valve adapter and replace cap (A).

15. Pivot QUIK-FILL ™ up.

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,862 -19-22JUL99-7/7
