Filling Solution Tank with Sprayer Pump Through Eductor

CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous which could poison and injure you.

IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

1. Operate engine at 1800 rpm.

AG,OUO1011,863 -19-23JUL99-1/10

2. Turn off solution pump switch (A) in cab side console.

CAUTION: QUIK-FILL ™ valve can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing QUIK-FILL ™ cap, make sure QUIK-FILL ™ valve is turned off.

3. Pivot QUIK-FILL ™ down.

A-Solution Pump Switch

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,863 -19-23JUL99-2/10

4. Open lock levers and remove cap (A).

5. Connect fill hose to QUIK-FILL ™ valve adapter and close lock levers.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,863 -19-23JUL99-3/10

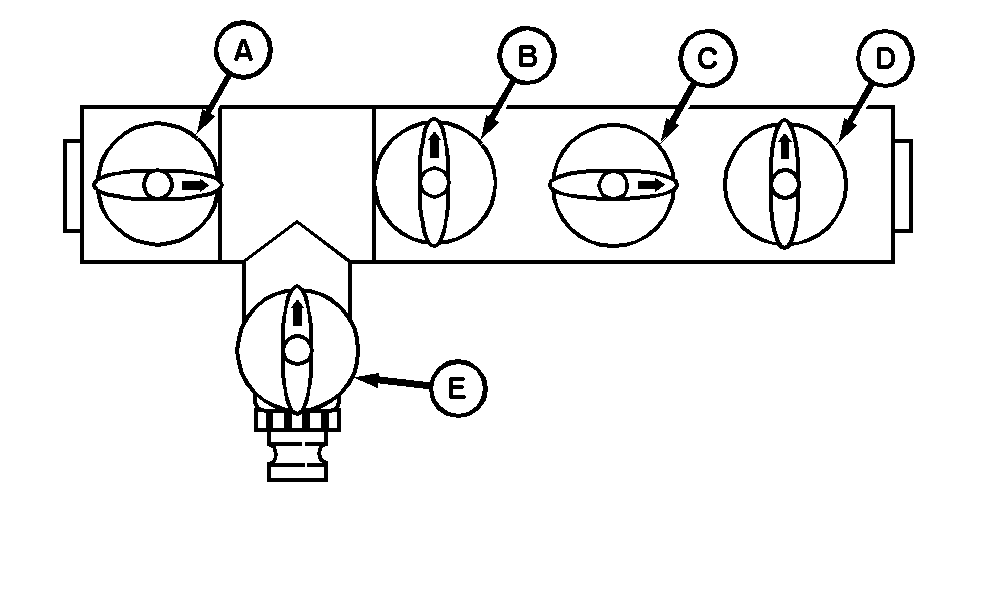

6. Turn valve (A) to "SOLUTION TANK" position.

7. Close valve (B).

8. Turn valve (C) to "EDUCTOR" position.

9. Close valve (D).

10. Open valve (E).

A-Tank Selector Valve
B-Solution Tank Open/Closed Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve
E-QUIK-FILL™ Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,863 -19-23JUL99-4/10

NOTE: When using remote solution pump switch, pump is designed to come up to operating speed slowly.

11. Move remote pump switch (A) to "LOAD" position and add approximately 379 L (100 gal) water.

A-Remote Pump Switch

AG,OUO1011,863 -19-23JUL99-5/10

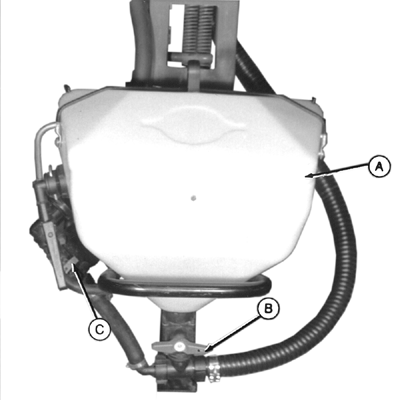

12. Lower eductor (A) and raise lid.

13. Open eductor tank valve (B) (arrow on handle points up) to allow chemicals to drain from tank.

14. Open tank rinse valve (C) (handle points away from tank) to rinse eductor tank.

15. Pour chemicals into eductor.

A-Eductor
B-Eductor Tank Valve
C-Tank Rinse Valve

AG,OUO1011,863 -19-23JUL99-6/10

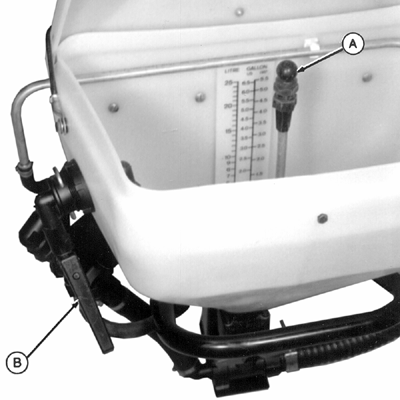

16. Place chemical container over rinse nozzle (A) in tank and hold down container rinse valve handle (B).

17. After rinsing chemical containers, close eductor rinse valve and eductor tank valve.

18. Place lid back on tank and return eductor back to its original position.

A-Rinse Nozzle
B-Rinse Valve Handle

AG,OUO1011,863 -19-23JUL99-7/10

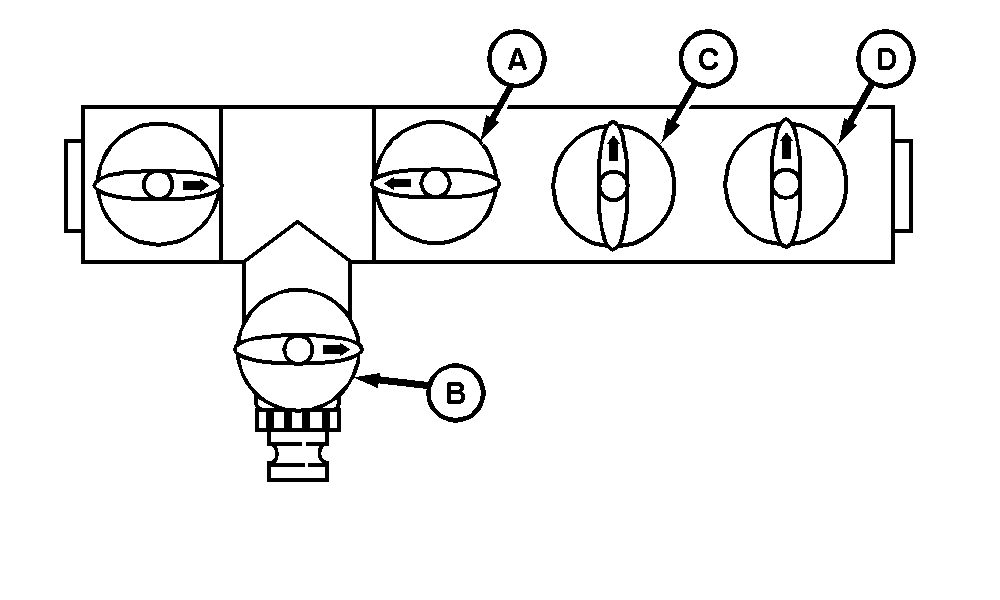

19. After solution tank has filled, turn valve (A) to "SOLUTION TANK OPEN" position while closing valve (B).

20. Close valve (C).

21. Turn valve (D) to "OFF" position.

A-Solution Tank Open/Closed Valve
B-QUIK-FILL™ Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,863 -19-23JUL99-8/10

22. Move remote pump switch (A) to "SPRAY" position.

A-Remote Pump Switch

AG,OUO1011,863 -19-23JUL99-9/10

23. Remove fill hose from QUIK-FILL ™ valve adapter and replace cap (A).

24. Pivot QUIK-FILL ™ up.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,863 -19-23JUL99-10/10
