CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous or poisonous materials which can cause serious injury or death to you or others.

IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to

obtain the desired application rate and effect.

CAUTION: QUIK-FILL ™ valve can contain hazardous materials which can poison, causing serious injury or death to you or others. Before removing QUIK-FILL ™ cap, make sure QUIK-FILL ™ valve is turned off.

1. Pivot QUIK-FILL ™ down.

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,864 -19-23JUL99-1/6

2. Open lock levers and remove cap (A).

3. Connect fill hose to QUIK-FILL ™ valve adapter and close lock levers.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,864 -19-23JUL99-2/6

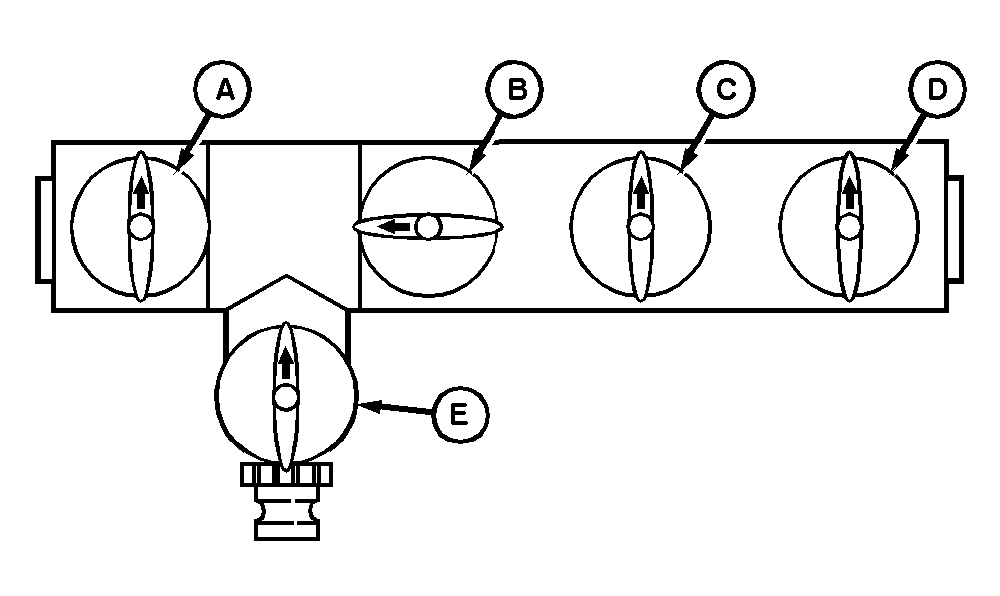

4. Close valves (A), (C), and (D).

5. Turn valve (B) to "SOLUTION TANK OPEN" position.

6. Turn on nurse tank pump and open valve (E).

A-Tank Selector Valve
B-Solution Tank Open/Closed Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve
E-QUIK-FILL™ Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,864 -19-23JUL99-3/6

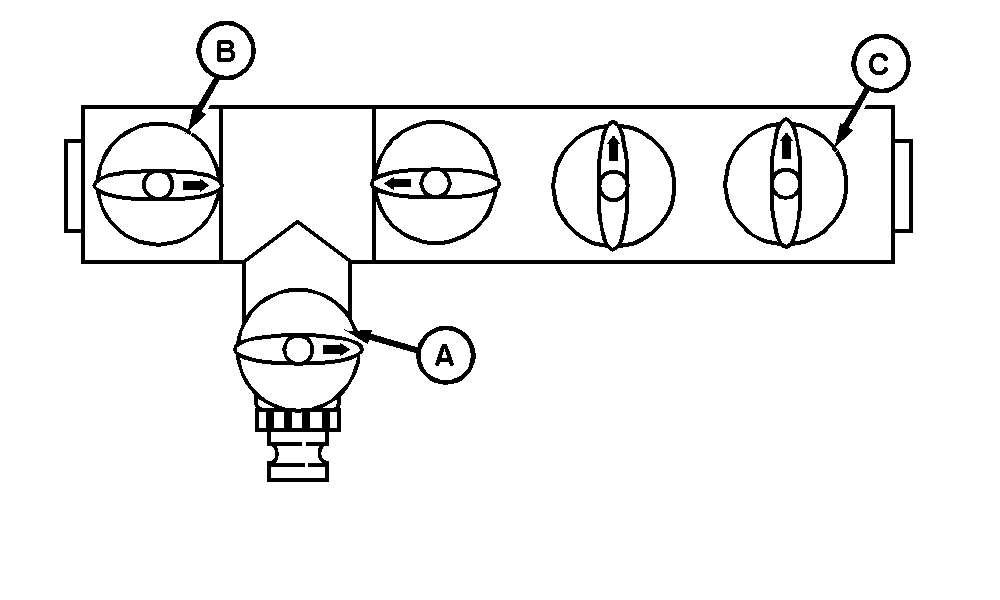

7. After solution tank has filled, close QUIK-FILL ™ valve (A).

8. Turn tank selector valve (B) to "SOLUTION TANK" position.

9. Turn bypass valve (C) to "OFF" position.

A-Quik-Fill Valve
B-Tank Selector Valve
C-By-Pass Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,864 -19-23JUL99-4/6

10. Move remote pump switch (A) to "SPRAY" position.

A-Remote Pump Switch

AG,OUO1011,864 -19-23JUL99-5/6

11. Remove fill hose from QUIK-FILL ™ valve adapter and replace cap (A).

12. Pivot QUIK-FILL ™ up.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,864 -19-23JUL99-6/6
