Filling Solution Tank with Nurse Tank Pump and Sprayer Pump

1. Operate engine at 1800 rpm.

AG,OUO1011,865 -19-23JUL99-1/7

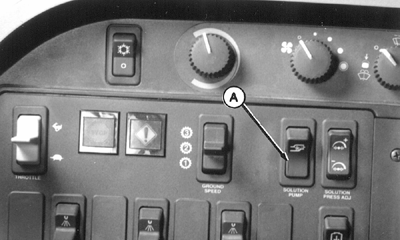

2. Turn off solution pump switch (A).

CAUTION: QUIK-FILL ™ valve can contain hazardous or poisonous materials which can cause serious injury or death to you or others. Before removing QUIK-FILL ™ cap, make sure QUIK-FILL ™ valve is turned off.

3. Pivot QUIK-FILL ™ down.

A-Solution Pump Switch

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,865 -19-23JUL99-2/7

4. Open lock levers and remove cap (A).

5. Connect nurse tank fill hose to QUIK-FILL ™ adapter and close lock levers.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,865 -19-23JUL99-3/7

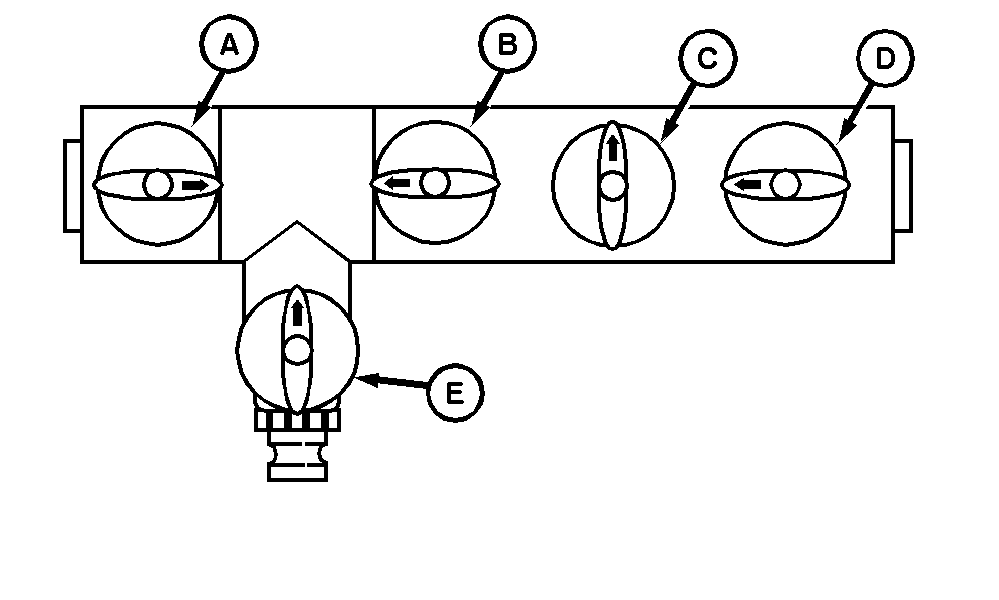

6. Turn valve (A) to "SOLUTION TANK" position.

7. Turn valve (B) to "SOLUTION TANK OPEN" position.

8. Close valve (C) and turn valve (D) to "BYPASS" position.

9. Turn on nurse tank pump and open QUIK-FILL ™ valve (E).

A-Tank Selector Valve
B-Solution Tank Open/Close Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve
E-QUIK-FILL™ Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,865 -19-23JUL99-4/7

NOTE: When using remote solution pump switch, pump is designed to come up to operating speed slowly.

10. Move remote pump switch (A) to "LOAD" position.

A-Remote Pump Switch

AG,OUO1011,865 -19-23JUL99-5/7

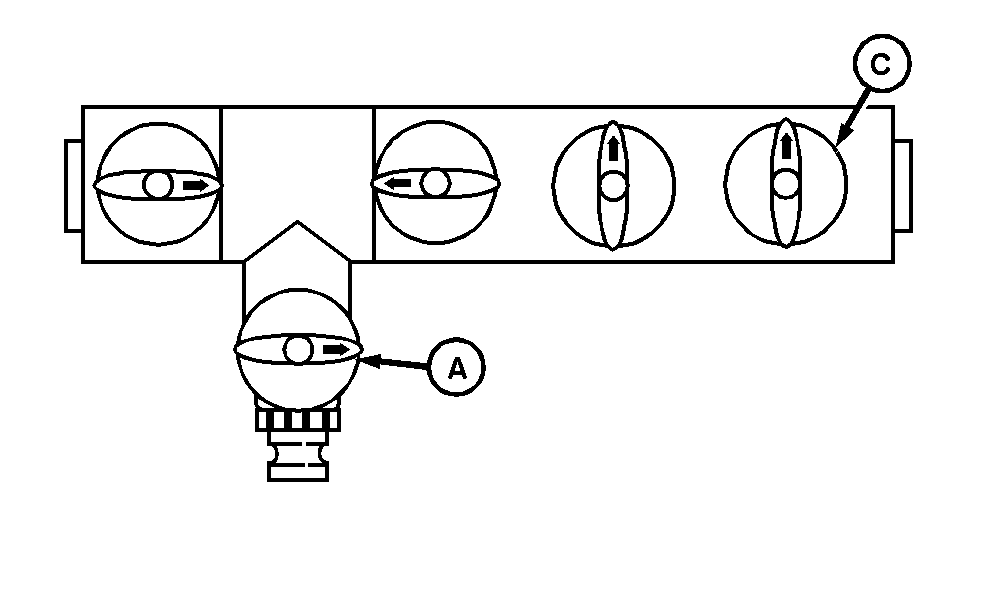

11. Close QUIK-FILL ™ valve (A) and turn off nurse tank pump.

12. Move remote pump switch (B) to "SPRAY" position.

13. Turn pressure valve (C) to "OFF" position.

A-Quik-Fill Valve
B-Remote Pump Switch
C-Pressure Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,865 -19-23JUL99-6/7

14. Remove fill hose from QUIK-FILL ™ valve adapter and replace cap (A).

15. Pivot QUIK-FILL ™ up.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,865 -19-23JUL99-7/7
