Filling Solution Tank with Nurse Tank Pump and Sprayer Pump Through Eductor

1. Operate engine at 1800 rpm.

AG,OUO1011,866 -19-23JUL99-1/10

2. Turn off solution pump switch (A).

CAUTION: QUIK-FILL ™ valve can contain hazardous or poisonous materials which can cause serious injury or death to you or others. Before removing QUIK-FILL ™ cap, make sure QUIK-FILL ™ valve is turned off.

3. Pivot QUIK-FILL ™ down.

A-Solution Pump Switch

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,866 -19-23JUL99-2/10

4. Open lock levers and remove cap (A).

5. Connect nurse tank fill hose to QUIK-FILL ™ adapter and close lock levers.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,866 -19-23JUL99-3/10

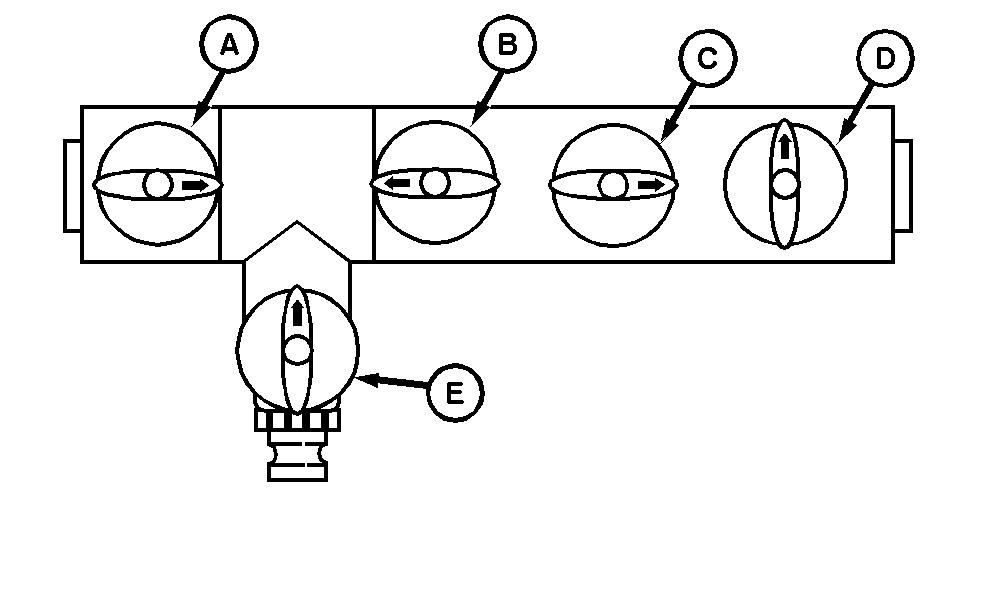

6. Turn valve (A) to "SOLUTION TANK" position.

7. Turn valve (B) to "SOLUTION TANK OPEN" position.

8. Turn valve (C) to "EDUCTOR" position.

9. Close valve (D).

10. Turn on nurse tank pump and open QUIK-FILL ™ valve (E).

A-Tank Selector Valve
B-Solution Tank Open/Close Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve
E-QUIK-FILL™ Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,866 -19-23JUL99-4/10

NOTE: When using remote solution pump switch, pump is designed to come up to operating speed slowly.

11. Move remote pump switch (A) to "LOAD" position and add approximately 379 L (100 gal.) of water.

A-Remote Pump Switch

AG,OUO1011,866 -19-23JUL99-5/10

12. Lower eductor (A) and raise lid.

13. Open eductor tank valve (B) (arrow on handle points up) to allow chemicals to drain from tank.

14. Open tank rinse valve (C) (handle points away from tank) to rinse eductor tank.

15. Pour chemicals into eductor.

A-Eductor
B-Eductor Tank Valve
C-Tank Rinse Valve

AG,OUO1011,866 -19-23JUL99-6/10

16. Place chemical container over rinse nozzle (A) in tank and hold down container rinse valve handle (B).

17. After rinsing chemical containers, close eductor rinse valve and eductor tank valve.

18. Place lid back on tank and return eductor back to its original position.

A-Rinse Nozzle
B-Rinse Valve Handle

AG,OUO1011,866 -19-23JUL99-7/10

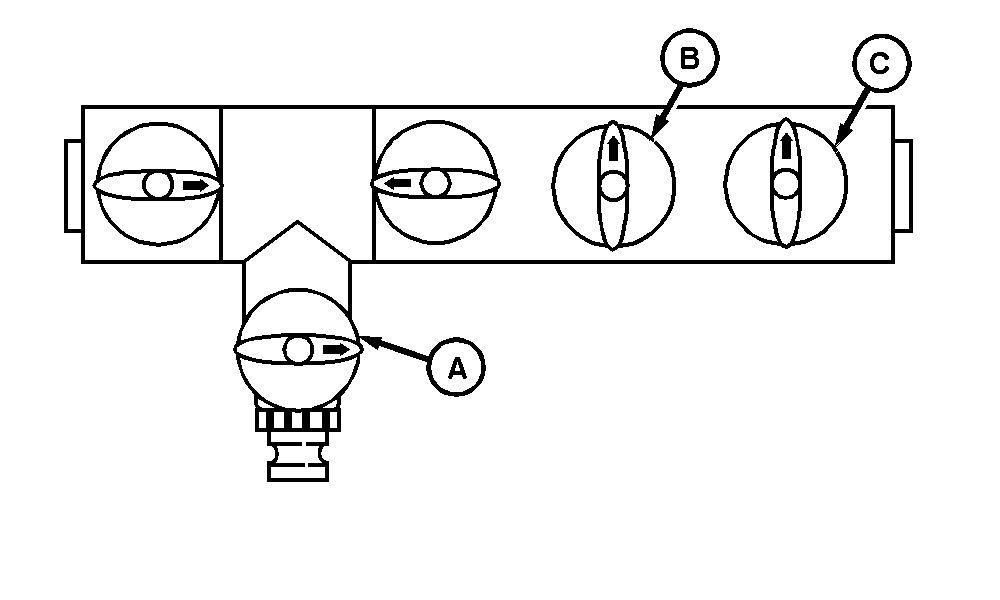

19. Close QUIK-FILL ™ valve (A) and tank rinse nozzles/eductor valve (B).

20. Turn bypass/boom spray valve (C) to "OFF" position.

A-Quik-Fill Valve
B-Tank Rinse Nozzles/Eductor Valve
C-Bypass/Boom Spray Valve

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,866 -19-23JUL99-8/10

21. Move remote pump switch (A) to "SPRAY" position.

A-Remote Pump Switch

AG,OUO1011,866 -19-23JUL99-9/10

22. Remove fill hose from QUIK-FILL ™ valve adapter and replace cap (A).

23. Pivot QUIK-FILL ™ up.

A-Cap

QUIK-FILL is a trademark of Deere & Company.

AG,OUO1011,866 -19-23JUL99-10/10
