Mixing Solution in Tank (Using Agitation)

With solution tank filled and solution pump primed, complete the following steps to thoroughly mix chemicals.

AG,OUO1011,867 -19-23JUL99-1/4

1. Turn valve (A) to "SOLUTION TANK" position.

2. Turn valve (B) to "SOLUTION TANK OPEN" position.

3. Close valve (C).

4. Turn valve (D) to "OFF" position.

A-Tank Selector Valve
B-Solution Tank Open/Closed Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve

AG,OUO1011,867 -19-23JUL99-2/4

NOTE: Amount of agitation is determined by how far agitation shut-off valve is open and where the spray off pressure is set.

Valve is fully open when handle is parallel to hose.

5. Open agitation line control valve (A) to desired setting.

6. Enter desired agitation pressure as spray off pressure in SPRAYSTAR ™ .

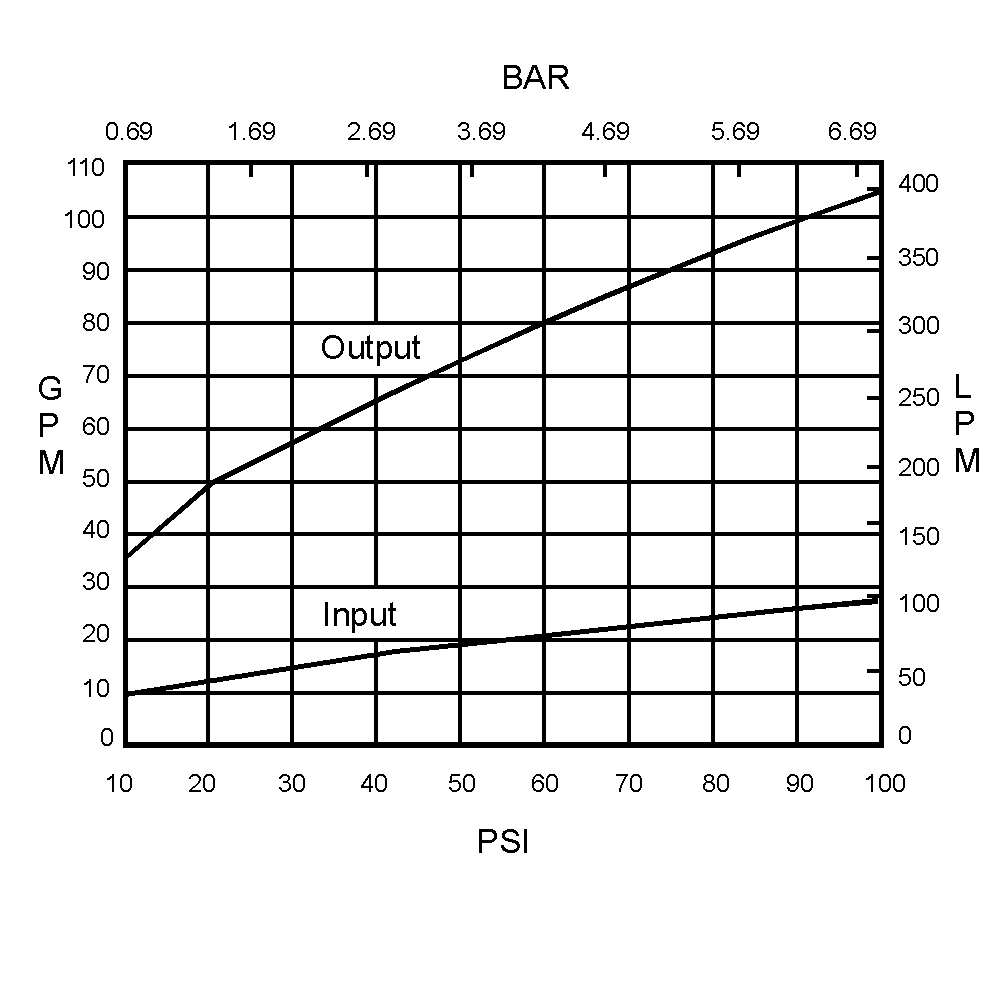

NOTE: Table illustrates flow rate (gpm) at desired spray off pressure when agitation control valve is fully open.

Input is the amount of solution coming from solution pump.

Venturi in nozzle pulls chemical to nozzle. Output is amount of solution coming out of nozzle.

A-Agitation Line Control Valve

SPRAYSTAR is a trademark of Deere & Company.

AG,OUO1011,867 -19-23JUL99-3/4

7. Depress solution pump switch (A) to engage solution pump.

8. Depress agitation switch (B) to open electric agitation valve.

9. Mix solution thoroughly before operating in the field.

NOTE: Agitation pressure will be the same as minimum pressure setting. To increase agitation, increase minimum pressure setting. Reset minimum pressure before spraying in the field.

A-Solution Pump Switch
B-Agitation Switch

AG,OUO1011,867 -19-23JUL99-4/4
