Preparing to Spray

1. Turn valve (A) to "SOLUTION TANK" position.

2. Turn valve (B) to "SOLUTION TANK OPEN" position.

3. Close valve (C).

4. Turn valve (D) to "OFF" position.


A-Tank Selector Valve
B-Solution Tank Open/Close Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve

N42184CG

AG,OUO1011,868 -19-23JUL99-1/2

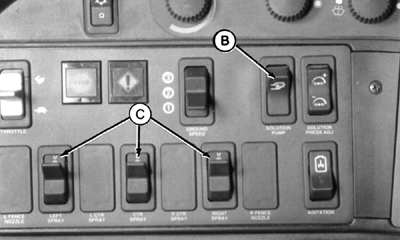

5. Verify remote pump switch (A) is in "SPRAY" position.

6. Depress solution pump switch (B) to engage solution pump.

7. Verify boom switches (C) are in upward position.


A-Remote Pump Switch
B-Solution Pump Switch
C-Boom Switches

N51515
N42173SH

AG,OUO1011,868 -19-23JUL99-2/2
