Using Rinse System (Rinsing Solution Tank and Boom)NOTE: After solution tank has been drained, complete the following steps when using rinse system to clean solution tank and boom assembly. 1. Start machine and operate at 1800 rpm. |
AG,OUO1011,870 -19-23JUL99-1/7 |
|

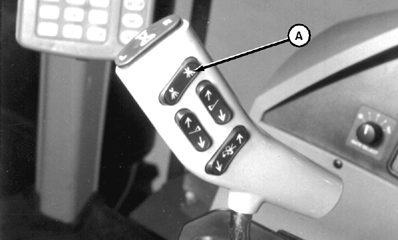

2. Turn off master "ON/OFF" switch (A) and solution pump switch (B).
|
|
AG,OUO1011,870 -19-23JUL99-2/7 |
|

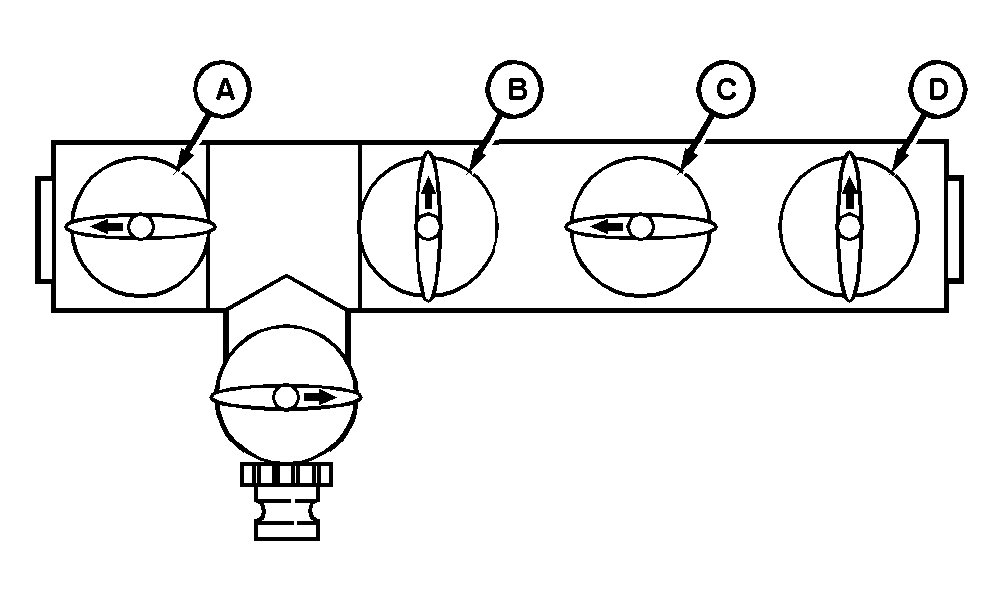

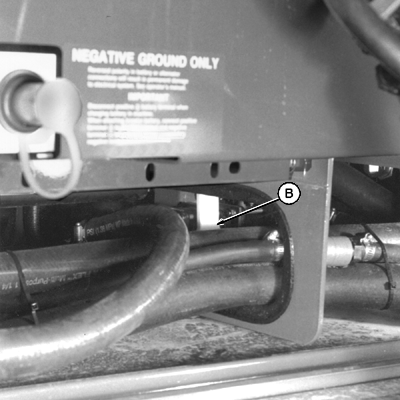

IMPORTANT: To avoid chemical getting into rinse tank open QUIK-FILL ™ and drain lines into bucket or suitable container. If lines do not drain in less than 1 minute contact your John Deere dealer. 3. Turn valve (A) to "RINSE TANK" position. 4. Close valve (B) and valve (D). 5. Turn valve (C) to "TANK RINSE NOZZLE" position. |
|
|
QUIK-FILL is a trademark of Deere & Company. | AG,OUO1011,870 -19-23JUL99-3/7 |
|

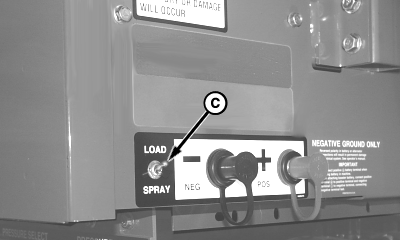

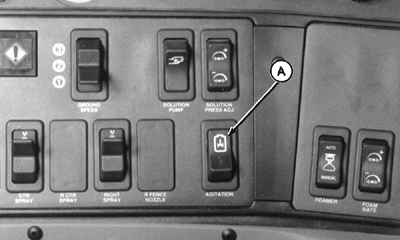

6. Press agitation switch (A). 7. Open agitation valve (B). NOTE: When using remote solution pump switch, pump is designed to come up to operating speed slowly. 8. Move remote pump switch (C) to "LOAD" position.
|
|
AG,OUO1011,870 -19-23JUL99-4/7 |
|

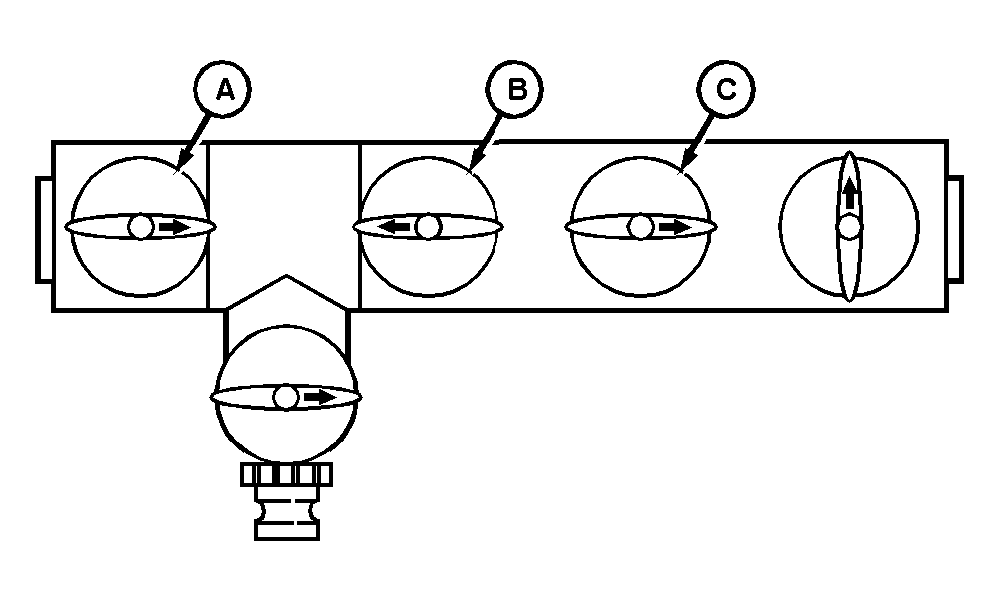

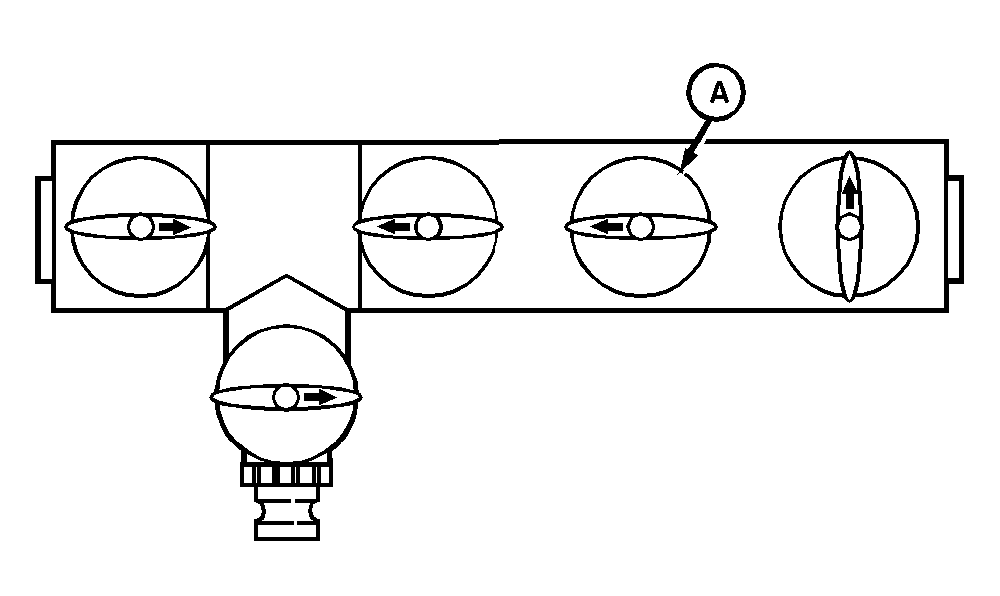

9. Add water to solution tank to thoroughly clean spray system. Add cleaning agents if necessary. 10. Turn tank selector valve (A) to "SOLUTION TANK" position while turning solution tank open/closed valve (B) to "SOLUTION TANK OPEN" position. 11. If equipped with eductor, turn tank rinse nozzle/eductor valve (C) to "EDUCTOR" position to flush lines.
|
|
AG,OUO1011,870 -19-23JUL99-5/7 |
|
12. Turn tank rinse nozzles/eductor valve (A) to "TANK RINSE NOZZLES" position.
|
|
AG,OUO1011,870 -19-23JUL99-6/7 |
|

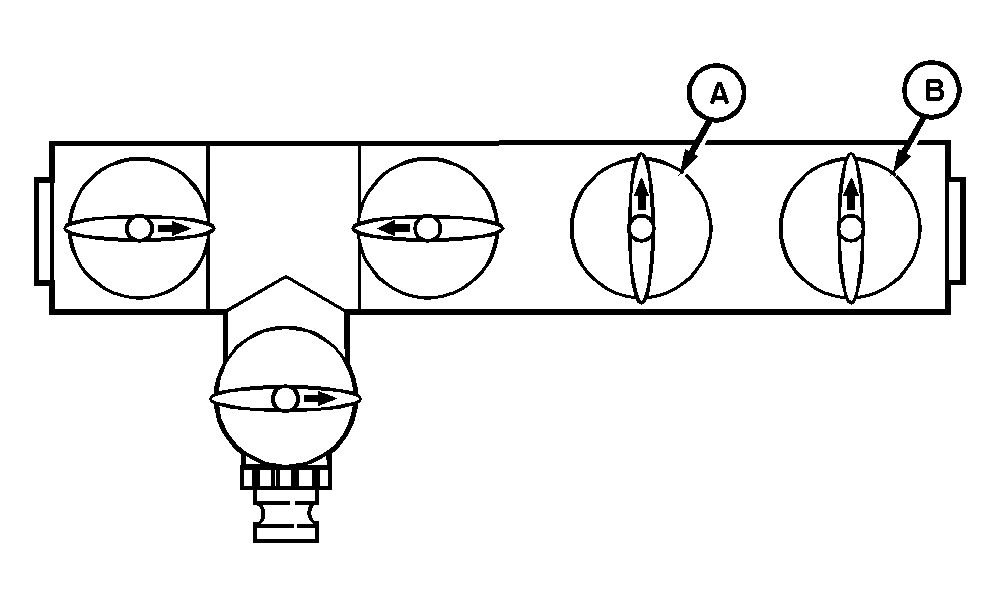

13. When solution tank is thoroughly rinsed, close tank rinse nozzles/eductor valve (A) and turn bypass valve (B) to "OFF" position. 14. Move remote pump switch (C) to "SPRAY" position. 15. Turn on spray system and spray rinse water through boom assembly and fence nozzles (if equipped).
|
|
