Using Rinse System (Rinsing Boom and Flowmeter Only)

NOTE: When rinsing only the boom assembly, complete the following steps:

1. Turn valve (A) to "RINSE TANK" position.

2. Close valve (B) and valve (C).

3. Turn valve (D) to "OFF" position.

4. Turn on spray system and spray rinse water through boom assembly.

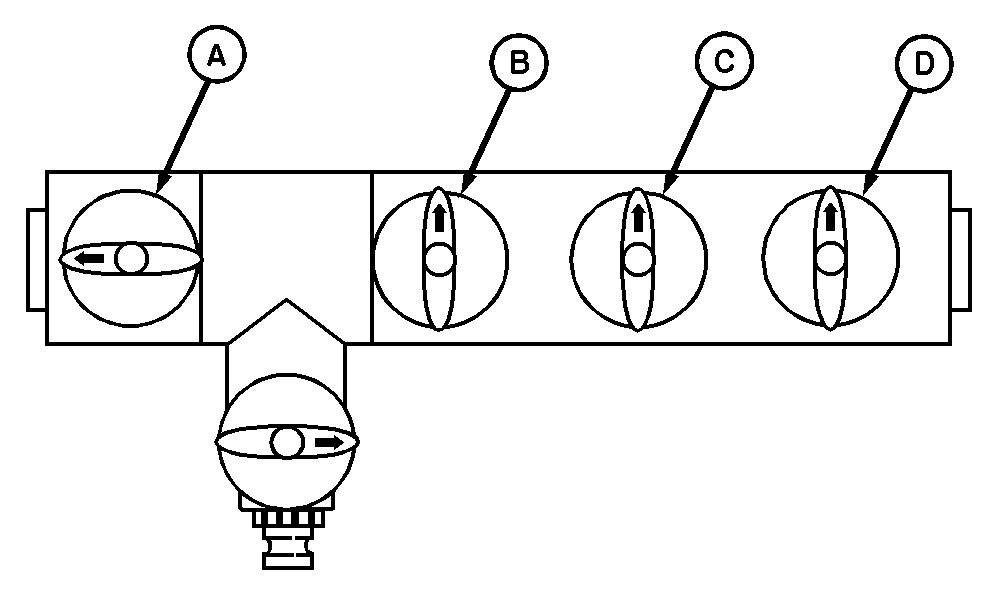

A-Tank Selector Valve
B-Solution Tank Open/Closed Valve
C-Tank Rinse Nozzles/Eductor Valve
D-Bypass Valve
