Unfolding Boom- 18.3 m (60 ft)

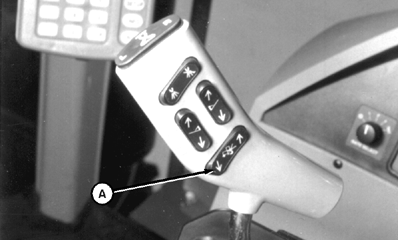

1. Start engine. Press top of raise/lower switch (A) to raise boom out of the boom rests.

A-Raise/Lower Switch

AG,OUO1011,879 -19-23JUL99-1/4

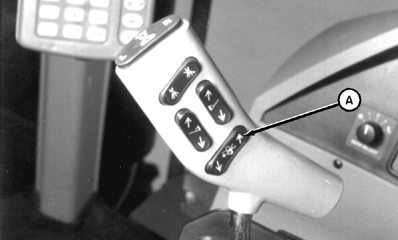

2. Press and hold fold mode switch (A) while pushing on bottoms of fold/level switches (B), until booms are fully unfolded.

3. Release fold mode switch.

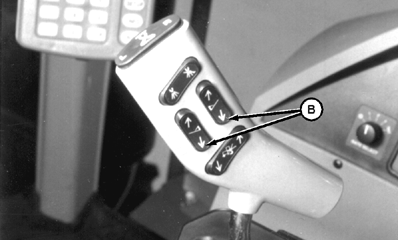

4. Press bottom of boom fold/level switches to extend level cylinders and level boom to horizontal position.

A-Fold Mode Switch
B-Fold/level Switches

AG,OUO1011,879 -19-23JUL99-2/4

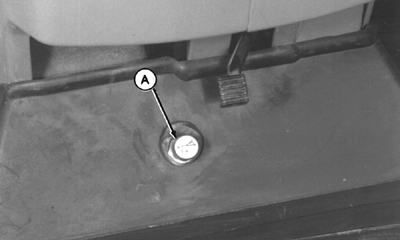

5. Press raise/lower switch (A) to lower booms and position nozzles at desired spray height.

A-Raise/Lower Switch

AG,OUO1011,879 -19-23JUL99-3/4

NOTE: Booms cannot be adjusted below horizontal.

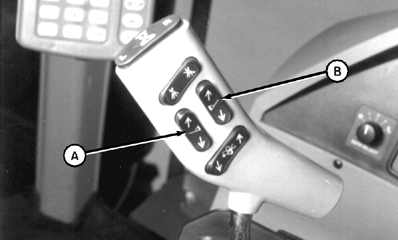

6. Use right-hand boom fold level switch (B) and left-hand boom fold level switch (A) to tilt booms for desired spray angle.

A-Left-Hand Boom Switch
B-Right-Hand Boom Switch
