Adjusting Level Cylinders

1. Unfold boom into operating (spraying) position.

2. Completely extend level cylinders.

3. Check that boom sections are parallel to center frame and level to the ground.

NOTE: Cylinder rods have machined flats for adjustment.

4. Slightly retract level cylinders to allow for adjustment.

5. Loosen jam nut (A) and turn cylinder rod (B) as necessary to level boom sections with center frame and ground. Tighten jam nut.

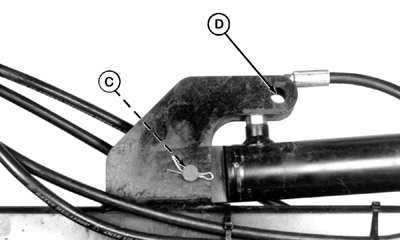

6. Position leveling cylinders to desired location. Hole (C) allows cylinder to return to horizontal. Hole (D) allows cylinder to lower below horizontal. Place pin in desired location.

A-Jam Nut
B-Cylinder Rod
C-Hole (Nominal Position)
D-Hole (Cylinder Below Horizontal)
