Installing Drop Nozzles

1. Install drop brackets (A) to backside of boom, using clamps. Adjust brackets for desired spacing, before tightening clamps.

A-Drop Brackets

AG,OUO1011,891 -19-27JUL99-1/4

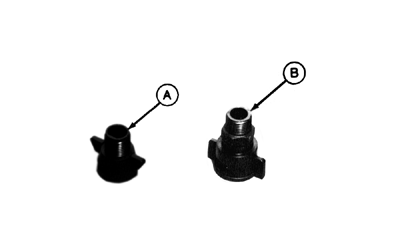

2. Remove nozzle tip cap from closest nozzle body and attach appropriate threaded fitting using old sealing washer from cap. Threaded fitting (A) is for Hardi nozzle bodies and threaded fitting (B) is for TEEJET ® nozzle bodies.

A-Threaded Fitting/Hardi Nozzle
B-Threaded Fitting/TeeJet Nozzle

TEEJET is a trademark of Spraying System Co.

AG,OUO1011,891 -19-27JUL99-2/4

3. Place drop nozzle tubes (A) on brackets and retain with clips.

4. Attach connecting hoses (B) to drop nozzle tube and threaded fitting on nozzle with clear colored O-rings installed in end fittings.

A-Drop Nozzle Tubes
B-Connecting Hoses

AG,OUO1011,891 -19-27JUL99-3/4

5. Close off unused nozzle bodies.

For Hardi nozzle body: Use blank (A), black O-ring (B) and yellow nozzle cap (C).

For TEEJET ® triplet nozzle body: Rotate to close.

For TEEJET ® single nozzle body: Use blank (A) or order flat blank disks (Part No. B11443) from service parts, sealing washer (D) from TEEJET ® cap (E) and TEEJET ® cap.

A-Blank
B-Black O-Ring
C-Yellow Nozzle Cap
D-Sealing Washer
E-TEEJET® Cap

TEEJET is a trademark of Spraying System Co.

AG,OUO1011,891 -19-27JUL99-4/4
