Adjusting Transport Cradles

Adjust transport position by moving cradle (A) to highest position (B), middle position (C) or lowest position (D).

The highest position provides easier access to cab while maintaining an overall folded height of less than 4.3 m (14 ft).

The middle position provides less access to cab but reduces overall folded boom height.

The lowest position reduces overall folded boom height to be level with cab for shipment on trailers.

Adjust front end of cradles so that boom is parallel to cradles, or so that front end of cradle is 25.4 mm (1 in.) closer to boom than rear end of cradle is to boom.

Maximum vehicle height when boom in lowest cradle position: 3832 mm (150.85 in.)

Maximum vehicle height when boom in middle cradle position: 3973 mm (156.40 in.)

Maximum vehicle height when boom in highest cradle position: 4115 mm (162 in.)

NOTE: Maximum vehicle heights are measured with the solution tank empty and air springs adjusted properly. Heights increase if solution tank is full and air springs are not adjusted properly.

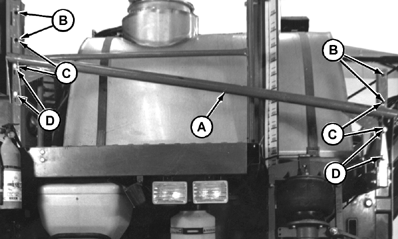

A-Transport Cradle
B-Highest Position
C-Middle Position
D-Lowest Position

AG,OUO1011,900 -19-27JUL99-1/1
